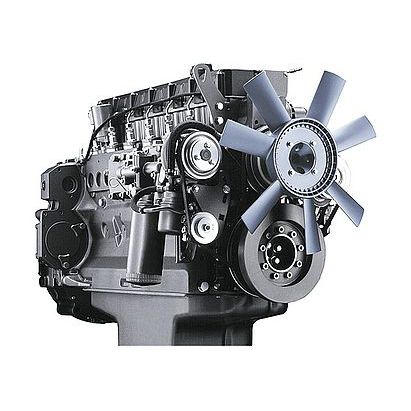

Diesel engine BF 6 M 1013 E
6-cylinderturbochargedin-line

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, in-line
Product applications
for agricultural applications
Other characteristics
water-cooled
Torque

702 Nm (517.7686 ft.lb)

Power

137 kW, 165 kW (186.268 hp)

Rotational speed

Min.: 800 rpm (5,026.55 rad.min-1)

Max.: 2,300 rpm (14,451.33 rad.min-1)

Description

Engine for agricultural machinery. Modern water-cooled 6-cylinder in-line engine. Turbocharging with charge air cooling (BFM1013EC/P). High-pressure fuel injection up to 1600 bar. Electronic engine governor with diagnostic facilities as option. 100% PTO capability at flywheel end and front end. Three options for installation of gear-driven hydraulic pumps. Long maintenance intervals and user-friendly maintenance design. Customer service available worldwide. For agricultural machinery 137 - 165 kW|184 - 221 hp at 2300 min-1|rpm EU Stage II / US EPA Tier 2  Water-cooled 4 and 6-cylinder inline engines with turbocharging and charge air cooling  The extremely compact engine design with structural oil pan and a customeroriented, modular system of optional add-on parts reduce the installation costs and increase the number of applications.  Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system.  Best cold starting performance even under extreme conditions.  Low noise emissions due to acoustically optimized components with very smooth running and high durability.  100% power take-off at flywheel and front end.  Wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.  The engines meet the requirements of the EU Stage II and US EPA Tier 2.
