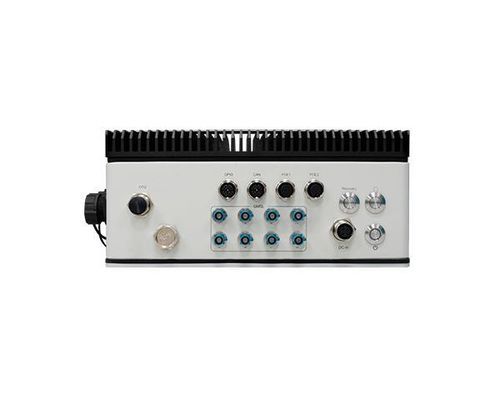

Edge AI PC V6Xa-ORN

in-vehicleEthernetUSB

NVIDIA Edge AI engine: NVIDIA® Jetson Orin Nano™ or NX - In-Vehicle Design 9-36VDC input with ignition control eMark certification - Waterproof & Dustproof design conforming to IP67 - Ruggedized fanless design with -20 ~ 70°C (Optional -40°C ~ 70°C) operating temperature - Optional Wireless Expansions: WiFi 6E, 4G LTE / 5G - Camera Connectivity: 2x USB 3.0, 8x GMSL2 or 6 x PoE (max.) - Optional OOB (out-of-band) support Features: - Wide-temp: -20~70°C - WiFi 6 - PoE LAN - AI - Out-of-band (OOB) Certifications: - RoHS Certification - CE Certification - FCC Certification - E-Mark (E13) Certification Technical Specifications: System - Processor: 6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU - Memory: - 8GB 128-bit LPDDR5 68 GB/s for Orin Nano™ 8GB - 4GB 64-bit LPDDR5 34 GB/s for Orin Nano™ 4GB - 16GB 128-bit LPDDR5 102.4GB/s for Orin NX 16GB - 8GB 128-bit LPDDR5 102.4GB for Orin NX 8GB - SOM: - NVIDIA® Jetson Orin Nano™ 4GB, 7-10W - NVIDIA® Jetson Orin Nano™ 8GB, 7-15W - NVIDIA® Jetson Orin NX 8GB, 10-20W - NVIDIA® Jetson Orin NX 16GB, 10-25W - GPU: - 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores for Jetson Orin Nano™ 8GB and Orin NX 8/16GB - 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores for Jetson Orin Nano™ 4GB Graphics - Display: 1 x HDMI, M20 Storage - Internal: M.2 2242/2280 M key (NVMe) Expansion - On board: - 1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E - 1 x M.2 Key B slot for 5G/LTE with Nano SIM Ethernet - Controller: 2x RJ45 GbE ports from Intel i210 - Supports 2x 15W PoE ports LED - Indicators: 1 x Power Front I/O - Ethernet: 2 x GbE M12 X code 8pin with PoE 802.3af - USB: 1 x USB 2.0 M20 (type A for recovery) - DC in: 1 x M12 B Code 5pin Power Input - CAN bus / COM: 1 x M12 A Code (Isolated CAN BUS 2.0 Port With Transceiver x 2) - GPIO: 1 x M12 GPIO / RS485 (4x GPI & 2x GPO & 1x RS485) - Camera Interface: 4 x GbE M12 X code 8pin PoE 802.3af) or 8 x GMSL2 (FAKRA SMB Plug Z code) Side I/O - Display: 1 x HDMI M20 - SIM: 1 x SIM card slot M20 - USB: 2 x USB 3.0 M20 (type A) Watchdog Timer - Output & Interval: Built-in NVIDIA® Jetson Orin™ Antenna - 6 x antenna holes Power - Type: 9-36V DC with power ignition control - Connector: 1 x M12 B Code 5pin Power Input - RTC Battery: Yes OS Support - Linux: Jetpack 6.2 Environment - Operating Temperature: -20 ~ 70°C (Optional -40°C~70°C) - Storage Temperature: -40°C ~ 85°C - Relative Humidity: 5 ~ 95% RH (non-condensing) Mechanism - Mounting: Wall mount (mounting brackets and screws) - Dimensions (W x H x D): 237mm x L: 194mm x H: 105.3mm - Weight: 5.2kg Standards and Certifications - Shock: Operation shock test: IEC-60068-2-27, MIL-STD-810H 514.8C-5 - Vibration: Operation Vibration test: IEC 60068-2-64, MIL-STD-810H 514.8C-5 - Certifications: CE, FCC, eMark, RoHS - IP Rating: IP67 enclosure Country of Origin: Taiwan
