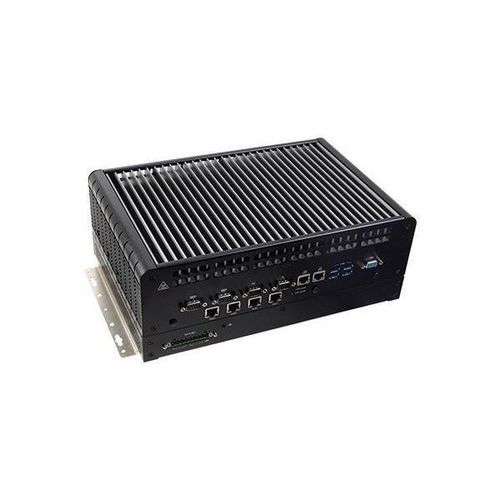

Edge AI computer EC300-CSembedded9th Generation Intel® Core™Intel® Core™ i7-9700TE
Add to favorites
Compare this product
Characteristics
- Type
- Edge AI
- Configuration
- embedded
- Processor
- 9th Generation Intel® Core™, Intel® Core™ i7-9700TE, Intel® Core™ i7-8700T, Intel® Core™ i5-9500TE, Intel® Core™ i7-9700E
- Ports
- USB 2.0, HDMI, RS-232, MXM, USB, USB 3.0, WiFi, RJ45, 5G, Mini PCIe, GNSS, SIM card, SATA
- Operating system
- Linux® Ubuntu™, Windows 10 IoT Enterprise
- Size
- 3U
- Protection level
- MIL-STD-810G
- Other characteristics
- SSD, PoE, HDD, GPU
Description
Product Overview
Features
Certifications
Tags
Technical Specifications
- Reliable fan-less Edge AI computer on 9th Generation Intel® Core™ Processors
- 4 x RJ45 802.af PoE ports at 15W per port
- Up to 150W MXM GPU supported for AI acceleration
- Extended operating temperature up to -25°C to 70°C
- 5G cellular and 4x swappable SSDs supported
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Features
- Wide-temp: -20~70°C
- Windows and Linux OS support
- Multiple Expansion
Certifications
- RoHS Certification
- CE Certification
- FCC Certification
- UKCA Certification
Tags
- Edge AI Computing
- MXM
- IoT
- Intel
- 5G
- PoE
- Mini PCIe
- Fanless Design
- 4K2K Display
- PCIe x16
- Windows
- Linux
- VGA
- 12V DC-in
- DDR4
- High-Performance
- Material Handling
- SCARA
- Service Robot
- UKCA Certification
Technical Specifications
- System
Processor: 8th/9th Generation Intel® Core™ Processors, LGA 1151
Supported CPUs: Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W; Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W; Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W; Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W (Other CPU support upon request)
Chipset: Intel® Q370 Chipset
Memory: Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS: AMI SPI 128Mbit - Graphics
Controller: Intel® HD Graphics
Display: 1 x VGA (DB-15), 1 x HDMI (with screw lock), 1 x DP++ (Standard Display Port Connector DIP type with screw lock), Support NIVIDIA Optimus technology
VGA: up to 1920x1200@60Hz
HDMI: up to 4096x2160@24Hz
DP++: up to 4096x2304@60Hz - AI Accelerator
Interface: MXM Type A, B, C on x16 PCIe 3.0
Controller: Nvidia Quadro embedded series - Storage
External: 4 x Swappable 2.5” storage bay with lock (supports 7mm SSD devices)
Internal: 1 x M.2 2280 M key supports SATA SSD - Expansion
1 x Half-size Mini PCIe for WiFi/BT modules (PCIe x1 & USB signal)
2 x Full-size Mini PCIe (PCIe x1 & USB 2.0 signal with SIM of each, all SIM Cards external accessible with cover against vibration)
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM slot (SIM card external accessible with cover)
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function) - Audio
Audio Codec: Realtek ALC888
Interface: 1 x Mic-in, 1 x Line-out - Ethernet
Controller: 5 x Intel® I210IT NIC (10/100/1000Mbps), 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Interface: 2 x RJ45 GbE, 4 x 802.3af 15W PoE ports - LED Indicators
1 x Power LED (green), 1 x Storage LED (red), 1 x LED - Front I/O
PoE: 4 x PoE 802.3af (15.4w) ports at RJ45 connectors (PSE side), NOT support Wake on Lan
Ethernet: 2 x GbE (RJ-45) support Wake on Lan
Serial: 2 x High speed full RS-232/422/485 (DB-9), 2 x RS-232/422/485 (onboard)
USB: 4 x USB 3.0 (type A)
Display: 1 x VGA display out by DB-15 connector
DIO: 1 x 8-bit isolated DI port by DB-9 connector, 1 x 8-bit isolated DO port by DB-9 connector, 2KV isolation
Power-in: 1 x 9-pin 5.0mm terminal block - Rear I/O
USB: 2 x USB 2.0 (type A)
Display: 1 x HDMI, 1 x DP++
Audio: 1 x Mic-in, 1 x Line-out (by 3.5mm 3P phone Jack)
Buttons: 1 x Power button, 1 x Reset button
Antenna: 7 x SMA type antenna holes for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
SIM: 3 x SIM sockets (external accessible with cover) - Watchdog Timer
System reset, programmable via software from 1 to 255 seconds - Security
TPM 2.0 - Power
Type: +12VDC
Connector: 9-pin 5.0mm terminal block - OS Support
Microsoft: Windows 10 IoT Enterprise 64 Bit
Linux: Ubuntu 18.04 - Environment
Operating Temperature: -20°C to 70°C with GTX1060, RTX2060; -20°C to 55°C with RTX2070 (CPU and GPU may be throttling at high temperature; Active fan for higher temperature or higher power MXM supported per request)
Storage Temperature: -40 to 85°C
Relative Humidity: 10% to 90% (non-condensing) - Mechanism
Construction: Metal + Aluminum
Mounting: Wall mount
Dimensions (W x H x D): 340.5 x 132 x 223mm (3U height, excluding rubber foot)
Weight: 9.85 kg - Standards and Certifications
Shock: IEC 60068-2-27, 3 g, 11 ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)
Vibration: IEC 60068-2-64, Frequency: 5 Hz to 500 Hz, Acceleration: 1 g rms, Test Axis: X, Y, Z axis, Test Time: 30 mins (Each axis), total 90 mins; MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
Certifications: CE, FCC Class A, RoHS, UKCA
IP Rating: IP40 - Country of Origin
Taiwan
