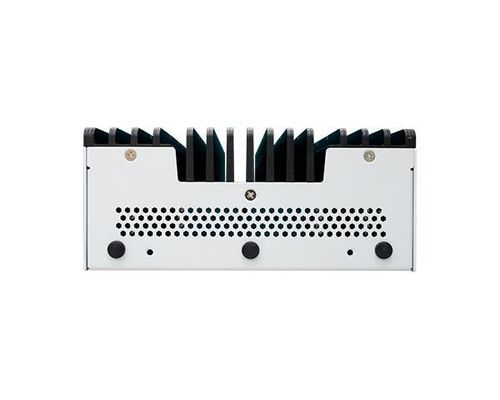

AI Inference PC X6-MTH-ORN

GPUboxwall-mounted

- Reinforce Nvidia ORIN NX computing power by Intel® Core™ Ultra Processor - AI engine NVIDIA Jetson Orin NX, up to 100 TOPS - Support Remote management and OTA by DFI OOB module - 4 M.2 B, E, M key expansion slots - Rich I/O: Audio, COM ports, CAN bus, 8 USB 3.2, HDMI, VGA, PoE LANs - Support M2A-OOB Features: - Fanless Design - Multiple Expansion - Quad Independent Display - Rich I/O - AI - Out-of-band (OOB) Certifications: - RoHS Certification - CE Certification - FCC Certification - UL-US Certification - UKCA Certification Technical Specifications: - Processor: Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W); Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W) - Memory: Two 260-Pin SO-DIMM up to 64GB, Dual Channel DDR5 5600MHz - BIOS: AMI SPI - Graphics: Intel® Iris® Xe Graphics; Features: DX12, Open GL 4.6, Vulkan 1.2; HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG; HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG - Display: Stacked type VGA and HDMI from COMe eDP; HDMI from Jetson module; ITE IT6564FN DP HDMI/VGA converter from eDP - AI Accelerator: Nvidia Orin NX, up to 100 TOPS; Nvidia Orin Nano, up to 40 TOPS - Storage: 1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request on MTH968); Optional M.2 M key SSD; Optional 2x 2.5” SATA tray kit, RAID 0/1 supported; M.2 2242/2280 M key on Jetson module (PCIe x4) - Expansion: COMe: 1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E; 1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM; 1 x M.2 2242/2280 M key (SATA 3 and PCIe gen3 x1 for NVMe); Jetson Orin: 1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E (or 1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM); 1 x M.2 2242/2280 M key (SATA 3 and PCIe gen3 x1 for NVMe) - Ethernet: 1 RJ45 GbE from Intel i210; 2x2 stacked RJ45 GbE ports from 4x Intel i210; Optional 2x 15W PoE via X103-PE30-48 - LED Indicators: 1 x Power Status; 1 x HDD activity - Front I/O: 1 x GbE (COMe MTH968); 2x2 stacked RJ45 GbE (Jetson); 2 x USB 3.2 from Type 6 COMe MTH968; 2 x USB 3.2; 4 x USB 3.0 from Jetson module; 1 x VGA; 1 x HDMI port with screw hole; 1 x 2-pin power terminal block - Rear I/O: 1 x DB-9 RS232 port (COMe); 1 combo DB-9 RS232/ CAN bus (Jetson); 1 x micro USB from Jetson module; 2 x HDMI port - Side I/O: 6 x antenna holes - Internal I/O: Support DFI OOB module - Security: TPM 2.0 on COMe - Power: 9-36V DC; 1x 2-pin terminal block; Rechargeable battery - OS Support: Windows 10, 11; Ubuntu 22.04 - Environment: Operating Temperature: -20°C to 60°C (sku dependent); Storage Temperature: -40°C to 85°C; Relative Humidity: 5 to 95% RH (non-condensing) - Mechanism: Construction: Aluminum + SGCC; Mounting: Wall mount (mounting brackets and screws), DIN mount by optional; Dimensions (W x H x D): 250 x 65 x 150 mm; Weight: < 3.5 kg - Standards and Certifications: Shock: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Vibration: IEC 60068-2-64 Test Fh: Vibration board-band random test, Random,2Grms @ 5~500 Hz, 30min.; Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 3Grms @ 10~500Hz, 30min.; Certifications: CE, FCC Class A, RoHS, UL 62368-1, UKCA; IP Rating: IP20 - Country of Origin: Taiwan
