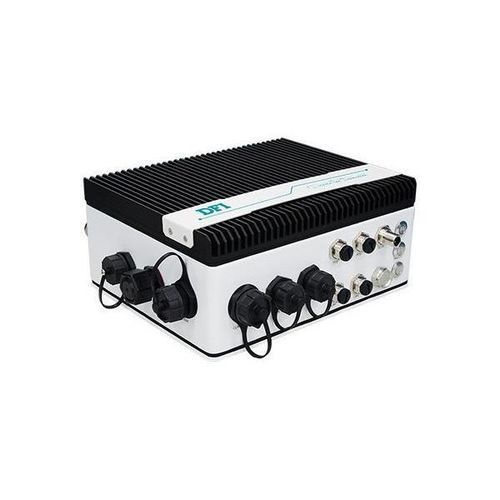

Edge AI PC X6X-ORN

wall-mountedNVIDIA® Jetson Orin™ NXARM® Cortex A78AE

Overview

• NVIDIA Edge AI engine: NVIDIA® Jetson Orin Nano™ or NX (MAXN SuperMode)
• Waterproof & dustproof enclosure certified to IP67
• Rugged fanless design for industrial operation from -20 to 60°C
• Optional wireless expansions: Wi‑Fi 6E, 4G LTE / 5G
• Camera connectivity: 4x USB 3.0, 2x GMSL2, up to 2x PoE
• Wide input range: 9–36 VDC
• Optional out-of-band (OOB) management support

Key Features

• Fanless, ruggedized enclosure for harsh environments
• Compact footprint for space-constrained installations
• Supports NVIDIA® Jetson Orin modules for on-edge AI inference
• IP67-rated protection against water and dust
• Multiple camera interfaces including GMSL2 and PoE
• Optional 5G and Wi‑Fi 6E connectivity
• OOB management option for remote maintenance

Specifications (selected)
System: Processor: 6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory: Orin Nano: 4GB (64-bit) / 8GB (128-bit) LPDDR5; Orin NX: 8GB / 16GB 128-bit LPDDR5
SOM power: Orin Nano 4/8GB: 7–25W; Orin NX 8/16GB: 10–40W
GPU: NVIDIA Ampere architecture — 512-core (Orin Nano 4GB) or 1024-core (Orin Nano 8GB / Orin NX 8/16GB) with Tensor Cores
Display: 1 x HDMI (M20)
Storage: M.2 2242/2280 M-key (NVMe)
Expansion: 1 x M.2 Key E 2230 (Wi‑Fi 6E); 1 x M.2 Key B for 5G/LTE + Nano SIM
Ethernet: 4 x RJ45 GbE (Intel i210); up to 2x 15W PoE ports supported
I/O: Front M12: 2 x GbE with PoE, 2 x USB 2.0; Side: 2 x USB 3.0, 1 x USB 2.0 (recovery); Camera: 2 x GMSL2 (FAKRA SMB), 2 x GbE M12 PoE
Power: 9–36 VDC input via M12 B-code 5-pin; RTC battery included
OS: Linux (JetPack 6.2)
Environment: Operating -20°C to 60°C; Storage -40°C to 85°C; 5–95% RH non-condensing
Certifications & ruggedness: CE, FCC Class A, RoHS; Shock & vibration: IEC/MIL-STD tested; IP67 enclosure
Country of Origin: Taiwan

Technical specifications

• Model: X6X-ORN
• Processor: 6/8-core Arm® Cortex®-A78AE v8.2 64-bit
• SOM options: NVIDIA® Jetson Orin Nano (4GB/8GB) and Jetson Orin NX (8GB/16GB)
• Memory: LPDDR5 up to 16GB, 128-bit
• GPU: NVIDIA Ampere architecture (512 / 1024 cores, Tensor Cores)
• Storage: M.2 2242/2280 M-key (NVMe)
• Expansion: M.2 Key E (Wi‑Fi 6E), M.2 Key B (5G/LTE + Nano SIM)
• Ethernet: 4 x GbE (Intel i210), up to 2 x 15W PoE
• Camera interfaces: 2 x GMSL2, 2 x GbE M12 PoE
• I/O: USB 3.0, USB 2.0, HDMI, CAN bus, RS232, GPIO
• Power: 9–36 VDC, M12 B-code connector
• Protection: IP67 waterproof & dustproof enclosure
• Operating temperature: -20°C to 60°C
• Certifications: CE, FCC Class A, RoHS
• OS support: Linux JetPack 6.2
