Embedded PC EC700-ASL/EC710-ASL

RS-232RS-485DisplayPort

Overview

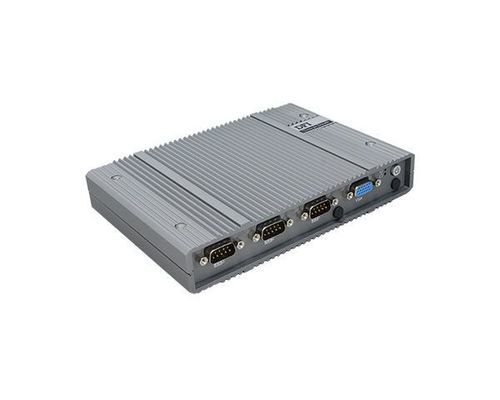

Fanless embedded system based on Intel® Processor Industrial RE Series. Slim, low-profile design for space-constrained installations. On-board Out-of-Band (OOB) capability and soldered DDR5 memory. Supports up to four independent displays via HDMI, USB-C (DP1.2 Alt Mode) and VGA. Multiple high-speed Ethernet ports and industrial operating temperature range for deployment in harsh environments.

Key Features

• Fanless design for silent, maintenance-free operation
• Compact dimensions (low profile system height options)
• Intel® Industrial RE Series processors (multiple SKUs available)
• On-board LPDDR5 memory (8GB / 16GB soldered)
• Quad independent display support (HDMI / USB-C / VGA)
• Out-of-band (OOB) management support
• Wide-range power input (9–36 VDC) and industrial temperature support

Processor
Intel® Industrial RE Series. Available SKUs include X7433RE (4 cores, 1.5–3.4 GHz), X7835RE (8 cores, 1.3–3.6 GHz), X7213RE (2 cores, 2.0–3.4 GHz), X7211RE (2 cores, 1.0–3.2 GHz). Note: TCC disabled by default in BIOS.

Memory & BIOS
Memory: 8GB / 16GB LPDDR5-4800 (soldered). BIOS: AMI SPI 256 Mbit (UEFI boot only).

Graphics
Controller: Intel® UHD Graphics. Up to 32 execution units; supports OpenGL 4.6, DirectX 12, Vulkan 1.2 (Windows); Mesa 3D / OpenGL 4.6 / Vulkan 1.2 (Linux). Precision: FP32, FP16, INT8. Compute: OpenCL 3.0. Display outputs: 1 x VGA, 1 x HDMI 1.4, 1 x USB-C (DP1.2 Alt Mode).

Storage & Expansion
Internal storage: 1 x M.2 2280 M key (PCIe Gen3 / SATA) — heatsink and thermal pad required. Expansion: 1 x M.2 2230 E key (USB 2.0 / PCIe, CNVi support), 1 x M.2 3042/3052 B key (USB3.0 / USB2.0 / PCIe with SIM), 1 x M.2 2242/2280 M key (PCIe/SATA; PCIe x2 support by project).

Audio
Audio codec: REALTEK ALC888S.

Ethernet & Networking
Controllers: 2 x Intel i226 2.5GbE (TSN support by project), 1 x Intel i210 GbE (supports DFI OOB function).

Front I/O
Serial: COM1/2: RS232/422/485; COM3: RS232. Display: 1 x VGA. Buttons: Power, Reset. Antenna: 2 x antenna holes.

Rear I/O
Ethernet: 2 x 2.5GbE RJ45, 1 x GbE RJ45 (DFI OOB support). Serial: COM4: RS232/DIO. USB: 3 x USB 3.2 Type-A, 1 x USB-C 3.2. Display: 1 x HDMI. Audio: 1 x 3.5 mm Line out / Mic In. Antenna: 2 x antenna holes.

Other Features
Indicators: Power LED, Storage LED. Watchdog Timer: programmable 1–255 s via software. Security: TPM 2.0 support. Power: 9–36 VDC input; connector: 2.5 mm DC jack; RTC battery: CR2032. OS Support: Windows® 10 IoT Enterprise, Windows® 11 IoT Enterprise; Linux: Ubuntu 22.04.

Environment & Mechanical
Operating temperature: -40 to 60°C (with 0.2 m/s airflow). Storage temperature: -40 to 85°C. Relative humidity: 10–90% RH (non-condensing). Construction: Aluminum + metal. Mounting: Wall mount / VESA / DIN-Rail (variant dependent). Dimensions (W x H x D): 180 x 33 x 127.8 mm (33 mm system height variant). Weight: TBD.

Standards & Certifications
Shock (operational): 30G, IEC-60068-2-27; MIL-STD-810G. Vibration (operational): 3 Grms, IEC 60068-2-64; MIL-STD-810G. Certifications: CE, FCC, RoHS, UKCA.

Packing & Origin
Packing list: 1 system unit. Country of origin: Taiwan.

Technical Specifications

• Product family: EC700-ASL / EC710-ASL
• CPU: Intel® Industrial RE Series (multiple SKUs)
• Memory: 8GB/16GB LPDDR5-4800 (soldered)
• Graphics: Intel® UHD Graphics (up to 32 EUs)
• Storage: M.2 2280 M key (PCIe Gen3 / SATA)
• LAN: 2 x 2.5GbE + 1 x 1GbE (OOB support)
• USB: 3 x USB 3.2 Type-A, 1 x USB-C 3.2
• Serial: Up to 4 COM ports (RS232/422/485/DIO variants)
• Display outputs: VGA, HDMI 1.4, USB-C (DP1.2 Alt Mode)
• Power input: 9–36 VDC
• Operating temp: -40 to 60°C (with specified airflow)
• TPM: 2.0 supported
• Mounting: Wall / VESA / DIN-Rail
• Certifications: CE / FCC / RoHS / UKCA
