Box PC WM130-HPT
wall-mountedAMD Ryzen™ EmbeddedRS-232

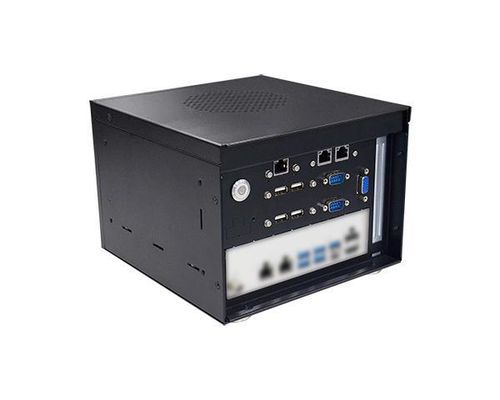

Box PC - WM130-HPT - DFI - wall-mounted / AMD Ryzen™ Embedded / RS-232
Box PC - WM130-HPT - DFI - wall-mounted / AMD Ryzen™ Embedded / RS-232
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
box
Configuration
wall-mounted
Processor
AMD Ryzen™ Embedded
Ports
USB 3.0, DisplayPort, USB 2.0, PCI Express 8x, RS-232, RS-485, RJ45, 16x PCI Express, 2.5 GbE, RS-422, SATA, M.2, PCI Express
Operating system
Windows 11
Size
compact
Domain
for industrial applications
Memory
96 GB

Description

Overview
  • Wall-mount industrial system based on AMD® Ryzen™ Embedded 8000 Series processors, designed for compact deployments and industrial applications.
  • Supports discrete NVIDIA A400/A1000 GPUs via a single PCIe slot and offers flexible I/O expansion for project-specific configurations.
  • Upgradeable architecture with DFI out-of-band (OOB) module support available per project.


Key Features
  • Compact wall-mount chassis (200 x 145.8 x 210.6 mm)
  • PCIe Gen4 x16 slot (x8 signal) supporting GPU expansion
  • Rich I/O: 4 x DP++, 2 x 2.5GbE, serial ports, USB and configurable DIO
  • Dual-channel DDR5 SODIMM up to 96GB (ECC supported)
  • Designed for industrial temperature range and Windows 11 LTSC support


Product Details
  • System - Processor: AMD® Ryzen™ Embedded 8000 Series (multiple SKUs up to 54W). Examples: 8845HS (8C/16T, 8MB cache, 3.8 / 5.1 GHz, 45W), 8645HS (6C/12T), 8840U (8C/16T, 28W), 8640U (6C/12T, 28W).
  • Memory: Dual-channel DDR5 SODIMM 5600/5200/4800 MHz, up to 96 GB (ECC supported).
  • Graphics: Integrated RDNA3 graphics (up to 6 WGPs); supports NVIDIA A400/A1000 via PCIe slot.
  • Display: 4 x DP++ (DP1.2, up to 3840x2160@60Hz).
  • Storage - Internal: 1 x 2.5" SATA bay; 1 x M.2 2280 M Key.
  • Expansion - Interface: 1 x PCIe Gen4 x16 (x8 signal); 1 x M.2 M Key 2280.
  • Audio: ALC888S codec; front panel: Line-out, Line-in, Mic-in.
  • Ethernet: 2 x 2.5GbE (Intel® I226V controllers).
  • I/O: Serial: 1 x RS-232, 1 x RS-232/RS422/RS485; USB: 2 x USB 3.2 Gen2, 2 x USB 2.0; Buttons: power; DIO: configurable per project.
  • Cooling: 1 x 80 mm system fan.
  • Watchdog Timer: System reset, programmable 1–255 seconds.
  • Power: DC-In: 12V or 19–24V; consumption TBD.
  • OS Support: Microsoft Windows 11 LTSC.
  • Environment: Operating temperature -5° to 45° C.
  • Mechanism: Sheet metal construction; wall mount; Dimensions: 200 x 145.8 x 210.6 mm; Color: Black; Country of Origin: Taiwan.


Technical specifications
  • Model: WM130-HPT
  • Processor family: AMD® Ryzen™ Embedded 8000 Series (SKUs up to 54W)
  • Memory: Dual-channel DDR5 SODIMM up to 96GB (ECC supported)
  • Graphics: Integrated RDNA3 (up to 6 WGPs); GPU via PCIe
  • Display outputs: 4 x DP++ (DP1.2 up to 3840x2160@60Hz)
  • Internal storage: 1 x 2.5" SATA; 1 x M.2 2280 M Key
  • Expansion: 1 x PCIe Gen4 x16 (x8 signal); 1 x M.2 M Key 2280
  • Audio: ALC888S; front Line-out/Line-in/Mic-in
  • Ethernet: 2 x 2.5GbE (Intel® I226V)
  • Serial: 1 x RS-232; 1 x RS-232/RS422/RS485
  • USB: 2 x USB 3.2 Gen2; 2 x USB 2.0
  • DIO: configurable / by project
  • Cooling: 1 x 80 mm fan
  • Watchdog: programmable 1–255 s
  • Power input: 12V / 19–24V DC-In
  • OS: Windows 11 LTSC supported
  • Operating temperature: -5° to 45° C
  • Construction & mounting: Sheet metal, wall mount
  • Dimensions: 200 x 145.8 x 210.6 mm
  • Color: Black
  • Country of origin: Taiwan
