EDGE PC EB100-MTU
embeddedwall-mountedVESA mounting

EDGE PC - EB100-MTU - DFI - embedded / wall-mounted / VESA mounting
EDGE PC - EB100-MTU - DFI - embedded / wall-mounted / VESA mounting
EDGE PC - EB100-MTU - DFI - embedded / wall-mounted / VESA mounting - image - 2
EDGE PC - EB100-MTU - DFI - embedded / wall-mounted / VESA mounting - image - 3
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
EDGE
Configuration
embedded, wall-mounted, VESA mounting
Processor
Intel® Core™ Ultra
Ports
DDR5, HDMI, DisplayPort, RS-232, RS-485, 2.5 GbE, RS-422, USB 3.2, USB Type-C, CAN bus, NVMe
Operating system
Windows 11, Windows 10 IoT Enterprise
Motherboard format
NUC
Size
ultra-compact
Other characteristics
fanless, SSD, with AI Acceleration module

Description

Overview
  • Compact industrial fanless NUC for edge applications, model EB100-MTU.
  • Supports Intel® Core™ Ultra processors (e.g., Core™ Ultra 7 155U / Ultra 5 125U), 12W TDP for passive cooling.
  • Single DDR5 SODIMM slot supporting up to 48 GB; internal M.2 2280 NVMe storage and M.2 2230 E-Key for wireless or AI modules.
  • Ultra-compact 111 x 50 x 106 mm footprint, 12V DC input; aluminum and metal construction with wall or VESA mounting.
  • Flexible I/O: multiple USB 3.2 ports, USB-C with DisplayPort Alt Mode, dual 2.5GbE Intel NICs, serial ports and optional CAN Bus.


Key features
  • Fanless design for wide-temperature and vibration-prone industrial environments.
  • Dual-display capability via HDMI / DisplayPort Alt Mode.
  • DDR5 memory (single SODIMM) and NVMe M.2 storage support.
  • Optional M.2 AI accelerator (Hailo) and M.2 wireless module support.
  • Rich industrial I/O including 2.5GbE, multiple USB 3.2 ports and serial interfaces.


Product notes
  • Status: Preliminary.
  • Certifications: CE, FCC Class A, RoHS.
  • Country of origin: Taiwan.


Technical specifications
  • Processor: Intel® Core™ Ultra (Meteor Lake U-series). Examples: Core™ Ultra 7 155U, Core™ Ultra 5 125U (12W TDP).
  • Memory: 1 x 262-pin DDR5 SODIMM, DDR5-5600, single channel, up to 48 GB.
  • Graphics: Intel® Arc™ integrated graphics; display support up to 4096 x 2304 @ 60 Hz.
  • Internal storage: 1 x M.2 2280 M-key (PCIe x4, NVMe).
  • Expansion: 1 x M.2 2230 E-key (PCIe/USB2.0) for wireless or AI accelerator (optional M.2 Hailo).
  • Ethernet: 2 x Intel® I226IT (10/100/1000/2500 Mbps) with TSN/TCC support.
  • Front I/O (model dependent): EB100-MTU2041: 2 x USB3.2 Gen2 + 2 x USB-C (DP Alt Mode). EB100-MTU2050: 3 x USB3.2 Gen2 + 1 x USB-C (DP Alt Mode).

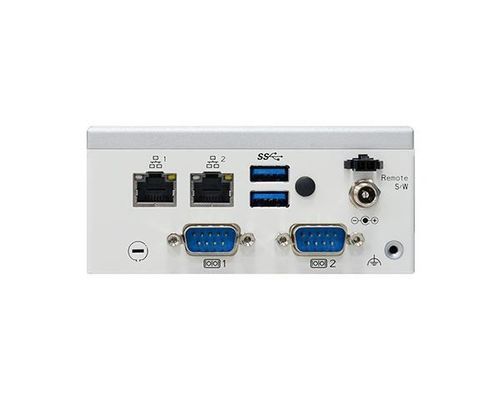

  • Rear I/O: 2 x Intel® I226IT Ethernet; 1 x RS232/422/485 (BIOS selectable); 1 x RS232; 2 x USB 3.2 Gen2; optional 2 x CAN Bus (D-SUB9).
  • Serial: 2 x DB9 (one RS232/422/485 configurable, one RS232).
  • Watchdog Timer: Programmable reset 1–255 seconds.
  • Power: DC jack (5.5 x 2.5 mm), 12V DC input.
  • OS Support: Windows 10 IoT Enterprise 64-bit; Windows 11.
  • Operating temperature (fanless, CPU TDP 12W): -20 to 50 °C (use wide-temp M.2 SSD for extended range).
  • Storage temperature: -20 to 85 °C; Relative humidity: 5–95% RH (non-condensing).
  • Mechanics & mounting: Aluminum and metal housing; wall or VESA rail mount.
  • Dimensions (W x H x D): 111 x 50 x 106 mm; Weight: TBD.
  • Shock & Vibration: Meets IEC 60068-2-27 (shock) and IEC 60068-2-64 / -2-6 (vibration) test profiles.
