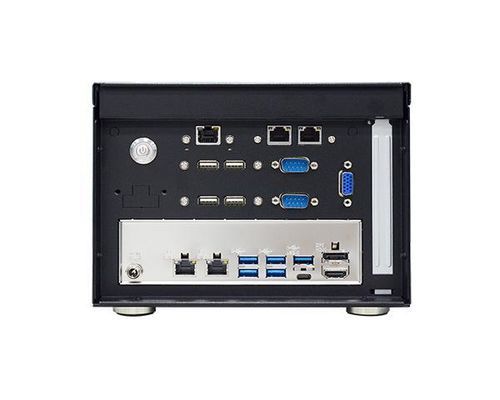

EDGE PC WM130-RPS

boxwall-mounted12th Generation Intel® Core™

Overview

• Wall-mount system for 12th/13th/14th Generation Intel® LGA 1700 processors, supporting up to 65W TDP
• Compact industrial chassis (200 x 145.8 x 210.6 mm) optimized for space-constrained installations
• Flexible architecture with PCIe Gen5 x16 slot and multiple M.2 slots for scalable I/O and storage
• Supports single-slot NVIDIA A400/A1000 GPUs; optional DFI OOB module for remote management

Key Features

• Compact industrial wall-mount design
• Multiple expansion options (PCIe x16 Gen5, M.2 M/E/B keys)
• Rich I/O: HDMI 2.0, DP++ 1.2, USB Type-C, multiple USB ports
• Dual 2.5GbE networking and WiFi 6 support
• Out-of-band (OOB) management support and watchdog timer
• Replaceable filtered cooling fan for industrial environments

System Compatibility
Supports a broad range of 14th/13th/12th Gen Intel® LGA 1700 processors up to 65W, including examples such as Intel® Core™ i9-14900, i7-14700, i5-14500 and i3-14100. Chipset options: Intel® R680E, Q670, H610E.

Memory & Storage
Dual DDR5 SODIMM up to 64GB (5600MHz) with ECC support on selected SKUs. Internal storage includes 1 x 2.5" SATA 3.0 bay and 1 x M.2 2280 M Key (PCIe x4/SATA), plus additional M.2 2242/3042/3052 B Key and M.2 2230 E Key for wireless or expansion.

Graphics & Display
Integrated Intel® UHD Graphics 700 series with DX12/OpenGL 4.6/Vulkan 1.2 acceleration. Video outputs: 1 x HDMI 2.0, 1 x DP++ 1.2 and 1 x USB Type-C (up to 4096x2304 @ 60Hz). Hardware decode/encode capabilities include 8K/5K/4K profiles as specified.

Expansion & Networking
1 x PCIe x16 (Gen5, Max. 75W) for GPU or accelerator; multiple M.2 slots for NVMe/SATA devices; 2 x 2.5GbE (RJ-45) LAN ports. USB configuration varies by chipset (R680E/Q670E variants provide up to 5 x USB 3.2 Gen2 + 1 x USB-C).

Power, Cooling & Security
Wide-range DC input 12–28V via DC jack or optional 4-pin terminal block. Cooling: 1 x 8cm system fan with replaceable air filter. Security: Nuvoton TPM 2.0. Watchdog: programmable system reset from 1 to 255 seconds.

OS Support & Environment
Validated for Windows 10 IoT Enterprise 2019. Operating temperature: -5° to 50° C; storage: -40° to 85° C; relative humidity: 5–95% RH (non-condensing).

Mechanical & Certifications
Sheet metal construction with wall-mount bracket. Dimensions (W x H x D): 200 x 145.8 x 210.6 mm. Shock/vibration and packaging standards include ISTA Project 1A; certifications: TBD. Country of origin: Taiwan.

Technical specifications

• Model: WM130-RPS
• Processor support: 12th/13th/14th Gen Intel® LGA 1700 (up to 65W)
• Chipset options: Intel® R680E / Q670 / H610E
• Memory: Dual DDR5 SODIMM up to 64GB (5600MHz)
• Graphics outputs: HDMI 2.0, DP++ 1.2, USB Type-C
• Internal storage: 1 x 2.5" SATA 3.0 + 1 x M.2 2280 M Key
• Expansion: 1 x PCIe x16 (Gen5), multiple M.2 slots (M, E, B keys)
• Networking: 2 x 2.5GbE
• Power input: 12–28V DC (DC jack or 4-pin terminal)
• Dimensions: 200 x 145.8 x 210.6 mm
• Operating temperature: -5° to 50° C
