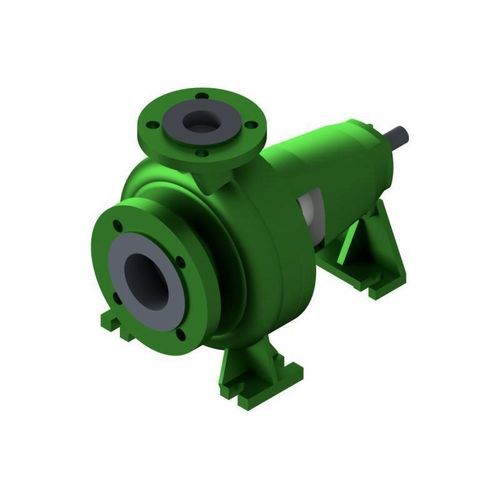

Centrifugal with volute pump NKL

fuelfor hydrocarbonswater

Description
The Type NKL is a PN10 standard pump according to EN 733. Sizes deviating from the characteristic curve are adapted and staged to operators' requirements to achieve the most suitable efficiency. This pump is a single-stage, single-suction volute pump in a light-duty design, with an axial suction nozzle and a centrally located discharge nozzle oriented vertically upwards. Axial thrust is balanced by relief bore(s). The pump shaft is supported by two permanently grease-lubricated deep-groove ball bearings.

Applications

• Oil & Gas
• Chemical industry
• Petrochemical
• Offshore
• Shipbuilding / Marine
• Refuelling systems & Aviation
• Industrial heating / Heat transfer fluids
• Tank farms / Storage terminals
• Renewable energy / Environmental engineering

Technical data (short overview)

• Q max: 500 m³/h [2200 g.p.m.]**
• H max: 140 m [460 ft]**
• Rated pressure: 10 bar [145 psi]*
• Temperature: 140° C [284° F]*
• Max speed: 3500 min−1
• Seal: mechanical seal
• Installation: horizontal
• Self-priming: yes
• Bearings: rolling bearings
• Lubrication: grease
• Materials: ductile iron / cast steel
• Standards: DIN EN 733, ISO 5199
• Ex protection: Category 2 / Zone 1

Notes

• * higher pressures and temperatures available on request
• ** depending on size and rotational speed

Characteristics / Technical specifications

• Standard: PN10 to EN 733 / ISO 5199
• Design: single-stage, single-suction, light-duty
• Suction nozzle: axial
• Discharge nozzle: central, vertical upward
• Axial thrust compensation: relief bore(s)
• Shaft bearings: two permanently grease-lubricated deep-groove ball bearings
• Seal: mechanical seal
• Material options: ductile iron, cast steel
• Suitable for: Oil & Gas, Chemical, Petrochemical, Offshore, Marine, Refuelling, Heating plants, Tank farms, Renewable energy
