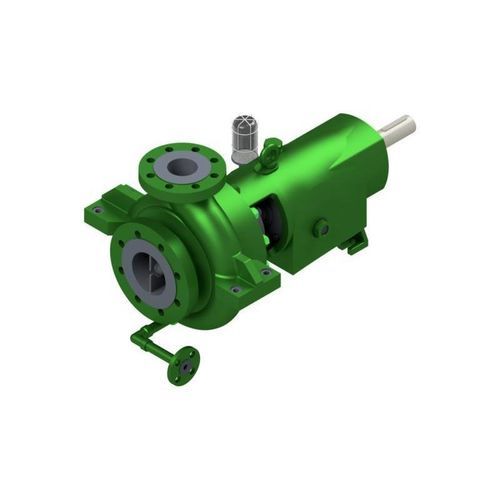

Centrifugal pump NCR

for hydrocarbonsoilfor chemicals

Description
The NCR is a single-stage volute-casing centrifugal pump designed for process applications and manufactured to API 610, OH2 configuration. It has an axial suction nozzle and a centerline, vertically upward discharge nozzle. The casing includes integrally cast supports for a mid-shaft bearing housing and a welded, flanged drain. Atmospheric sealing uses metal-to-metal profile rings; the seal chamber accepts API 682 mechanical seals.

Applications

• Oil & Gas
• Chemical
• Petrochemical
• Offshore
• Shipbuilding / Marine
• Refuelling & Aviation
• Tank terminals / Tank farms
• Renewable energy / Environmental technology

Notes
* Higher pressures and temperatures available on request
** Depending on size and speed

Technical specifications

• Type: NCR
• Design: single-stage volute-casing pump, process construction, API 610, OH2
• Q max: 1400 m³/h [6160 g.p.m.]**
• H max: 250 m [820 ft]**
• Operating pressure: 40 bar [580 psi]*
• Temperature: 250 °C [480 °F]*
• Max. speed: 3500 min−1
• Sealing: mechanical seal; atmospheric sealing: metal-to-metal profile rings
• Bearings: cylindrical roller + angular contact ball pair in back-to-back arrangement; replaceable bearing seals both sides
• Installation: horizontal
• Self-priming: no
• Lubrication: oil
• Materials: Duplex, Ni-base alloys, spheroidal iron / cast steel, austenitic castings
• Standards: API 610, API 682
• Ex protection: Category 2 / Zone 1
