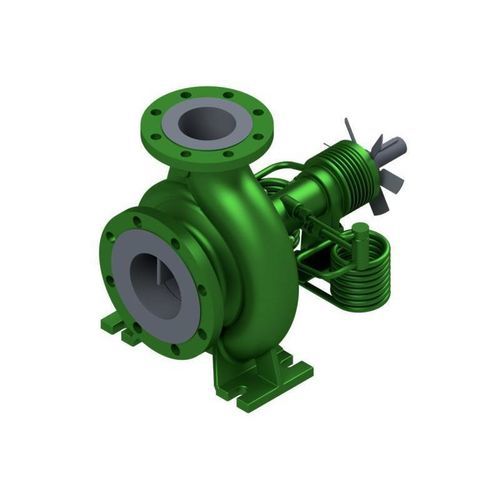

Centrifugal with volute pump NKX

diathermic oilself-primingstationary

Product description
The Type NKX is a single-stage standard pump according to EN 733, designed for thermal oil applications. Non-standard sizes can be adapted to operator requirements and staged to achieve optimal efficiency.

Design features
This pump is a single-stage, single-suction volute pump in a light design with an axial suction nozzle and a centreline, vertically upward discharge nozzle. Axial thrust is balanced by relief bores.

Bearings and sealing
The pump shaft is supported on the impeller side by a SiC plain bearing and on the drive side by a grease-lubricated rolling bearing. The patented cooling and degassing system ensures continuous venting of the mechanical seal chamber; no external intervention is required. The pump is self-venting.

Operating limits
Additional cooling permits operation up to 3500 min−1. The rolling bearing temperature never exceeds 100 °C even under extreme load conditions.

Applications

• Oil & Gas
• Chemicals
• Petrochemicals
• Offshore
• Shipbuilding / Marine
• Refuelling systems & Aviation
• Industrial heating systems / heat transfer
• Tank farms / storage terminals
• Renewable energy / environmental technology

Characteristics / Specifications

• Q max: 500 m³/h [2200 g.p.m.]**
• H max: 140 m [460 ft]**
• Operating pressure: 10 bar [145 psi]*
• Temperature: 350 °C [660 °F]*
• Max. speed: 3500 min−1
• Sealing: mechanical seal
• Installation: horizontal
• Self-priming: yes
• Bearing arrangement: rolling bearing (drive side), SiC plain bearing (impeller side)
• Lubrication: grease
• Materials: spheroidal graphite cast iron
• Standards: DIN EN 733, ISO 5199
• Ex protection: Category 2 / Zone 1
• Notes: * higher pressures and temperatures on request; ** depending on size and speed
