Side-channel pump SCM

fuelfor gasoil

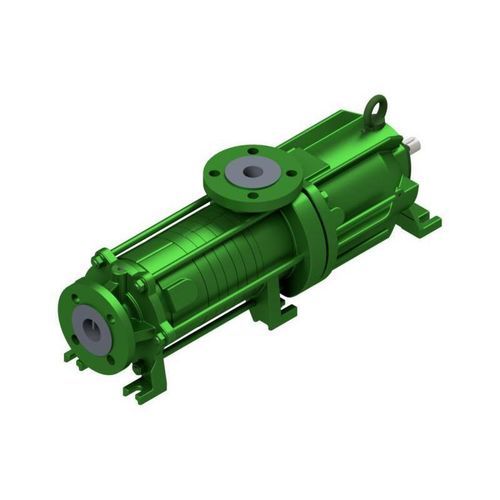

Product description The SCM is a single- or multi-stage horizontal side-channel pump in a hermetically sealed design with a heavy-duty permanent magnetic coupling. Suction and discharge flanges as well as casing bolts are designed to PN40. Containment shells are customized to the operating pressures and hermetically seal the conveyed medium to the outside. The axial suction flange and suction impeller provide low NPSH values. The SCM is suitable for safe, leak-free transfer of hazardous or aggressive liquids, including media with significant gas content. Side-channel pumps are more economical for relatively high pressures at low flow rates due to their high pressure coefficient compared to conventional centrifugal pumps.

Applications

• Oil & gas
• Chemistry
• Petrochemistry
• Offshore
• Ship technology / marine
• Refueling equipment & aviation
• Tank storages / tank farms
• Renewable energy / environmental engineering

Technical data (highlights) Q max: 32 m³/h [141 g.p.m.]**, H max: 600 m [1970 ft]**, operating pressure: 40 bar [580 psi]*, temperature: 180° C [356° F]*, max rotational speed: 1750 rpm, gasket/mechanical seal: magnetic coupling (containment shell), installation: horizontal, self-priming: yes.

Characteristics / technical specifications

• Type: single- or multi-stage horizontal side-channel pump (SCM)
• Design: hermetically sealed with heavy-duty permanent magnetic coupling
• Suction/discharge flanges and casing bolts: PN40
• Containment shells: customized to operating pressures
• Q max: 32 m³/h [141 g.p.m.]** (depending on size and speed)
• H max: 600 m [1970 ft]** (depending on size and speed)
• Operating pressure: up to 40 bar [580 psi]* (higher pressures on request)
• Temperature range: up to 180° C [356° F]* (higher temperatures on request)
• Max rotational speed: 1750 rpm
• Gasket / mechanical seal: magnetic coupling (containment shell for hermetic sealing)
• Installation: horizontal
• Self-priming: yes
• Bearings: rolling bearing; product-side plain bearing
• Lubrication: grease
• Materials: duplex, Ni-based alloys, spheroidal graphite iron / cast steel, austenitic steel
• Standards: ISO 15783
• Explosion protection: category 2 / zone 1
• Suitable for safe, leak-free transfer of hazardous or aggressive liquids and media with significant gas content

Notes

• * higher pressures and temperatures available on request
• ** values depend on pump size and rotational speed
