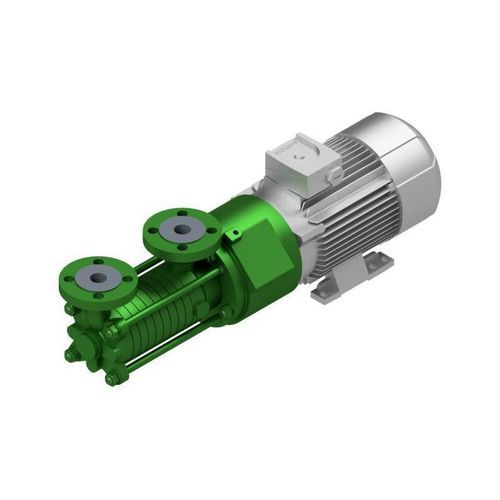

Side-channel pump WPM

for hydrocarbonsfor chemicalsmagnetic-drive

Description
Type WPM is a single- or multi-stage horizontal side-channel pump with self-priming capability. Side-channel pumps combine self-priming function with a high pressure factor, making them economical for pumping low flow rates against relatively high heads compared with standard centrifugal pumps. Suction and discharge nozzles can be rotated in 90° increments in all directions. Self-priming is guaranteed only with overhead suction and discharge nozzles. Stages are sealed from the atmosphere by chambered O-rings. The pump shaft is supported in plain bearings. The pump features a permanent-magnet coupling and a containment shell that hermetically seals the fluid. An internal circulation system dissipates heat generated by eddy-current losses. Direct mounting of the auxiliary motor eliminates additional bearings and mechanical couplings.

Applications

• Chemistry
• Petrochemistry
• Tank storages / tank farms

Key features

• Single- or multi-stage side-channel design with permanent-magnet coupling
• Self-priming capability (only guaranteed with overhead suction and discharge nozzles)
• Horizontal installation
• Suction and discharge nozzles rotatable in 90° increments
• Stages sealed by chambered O-rings
• Shaft supported in plain bearings
• Containment shell hermetically seals the pumped fluid
• Internal circulation for dissipation of eddy-current heat
• Direct auxiliary motor mounting eliminates additional bearings and mechanical coupling

Documentation
Brochure (de) available. Brochure (en) available.

Technical specifications

• Q max: 2.4 m³/h [10.6]**
• H max: 260 m [853 ft]**
• Operating pressure: 24 bar [348 psi]*
• Temperature: 150° C [302° F]*
• Max rotational speed: 3500 min−1
• Sealing / mechanical seal: magnetic coupling
• Installation: horizontal
• Self-priming: yes (only with overhead suction and discharge nozzles)
• Bearing: plain bearing
• Materials: duplex, Ni-based, austenitic steel
• Standards: ISO 15783
• Explosion protection: category 2 / zone 1
• * higher pressures and temperatures on request
• ** depending on size and speed
