Impeller pump SCMB

oilfor chemicalsmagnetic-drive

Description

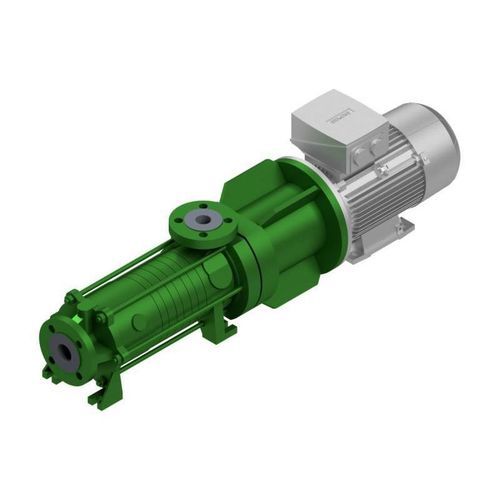

Type SCMB is a single or multi-stage self-priming horizontal side-channel pump designed for low-flow, high-head applications. The axial suction port combined with a radial impeller provides low NPSH requirements. Steps are sealed from atmosphere with chambered O-rings. Shaft support is provided by SiC plain bearings. The pump uses a permanent magnet coupling and a containment shell to hermetically separate the pumped fluid from the environment. Internal circulation dissipates heat from eddy-current losses. Direct mounting of an auxiliary motor removes the need for additional bearings and a mechanical coupling.

Applications

• oil & gas
• chemical industry
• petrochemical plants
• offshore installations
• shipbuilding / marine
• refueling systems & aviation
• tank storage / tank farms
• renewable energy / environmental engineering

Technical data (summary)

• Q max: 32 m³/h [141 g.p.m.] (depending on size and speed)
• H max: 600 m [1970 ft] (depending on size and speed)
• Operating pressure: 40 bar [580 psi] *
• Temperature: 180° C [356° F] *
• Max rotational speed: 1750 min−1
• Gasket / mechanical seal: magnetic coupling
• Installation: horizontal
• Self-priming: yes
• Bearing: plain bearing (SiC)
• Materials: duplex, Ni-based alloys, spheroidal graphite iron / cast steel, austenitic steel
• Standards: ISO 15783
• Explosion protection: category 2 / zone 1

Notes

• * higher pressures and temperatures on request
• ** depending on size and speed

Technical specifications

• Model: SCMB
• Type: single or multi-stage self-priming horizontal side-channel pump
• Q max: 32 m³/h [141 g.p.m.]**
• H max: 600 m [1970 ft]**
• Operating pressure: 40 bar [580 psi]*
• Temperature: 180° C [356° F]*
• Max rotational speed: 1750 min−1
• Seal / coupling: permanent magnet coupling (magnetic coupling)
• Installation: horizontal
• Self-priming: yes
• Bearing: SiC plain bearing
• Materials: duplex; Ni-based alloys; spheroidal graphite iron / cast steel; austenitic steel
• Standards: ISO 15783
• Explosion protection: category 2 / zone 1
