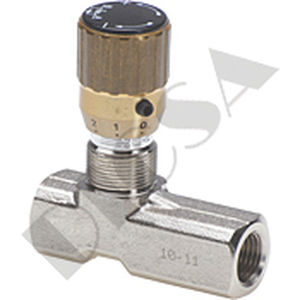

Needle valve ZFT2253U serieswith handwheelflow controlstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- with handwheel
- Function
- flow control
- Body
- stainless steel, forged steel
- Other characteristics
- unidirectional
- DN
0.25 in, 0.375 in, 0.5 in, 0.75 in
- Pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 130 °C
(266 °F)Min.: -20 °C
(-4 °F)- Flow rate
12 l/min, 30 l/min, 45 l/min, 85 l/min
(3.17 us gal/min, 7.93 us gal/min, 11.89 us gal/min, 22.45 us gal/min)
Description
The ZFT2253U series from Dicsa has a body made out of AISI 316 Stainless Steel and a needle made out of X 10 Cr Ni S 1809. It has a PTFE antiextrusion ring and a handwheel made out of GD Al SI 12. It also has a working temperature range of -20ºC to +130ºC.
