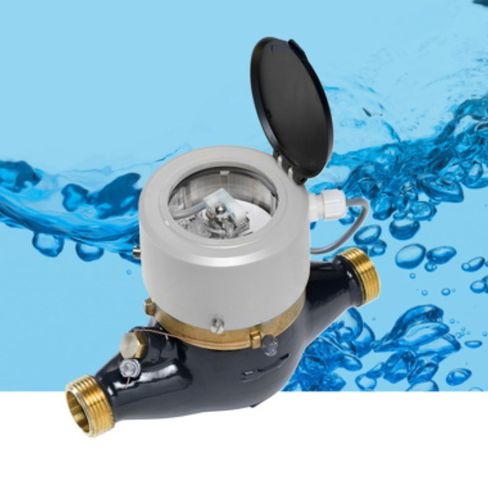

Dry dial water meter CORONA DP 405multi-jet vane wheel
Add to favorites
Compare this product
Characteristics
- Display
- dry dial
- Technology
- multi-jet vane wheel
Description
Application:
Contact water meter for proportional control of pumps, motors, etc. and for remote transmission of flow rates.
Features:
Multi-jet impeller meter in completely dry-running design with magnetic coupling
Only the impeller operates in the wet chamber to prevent faults due to sediment
Encapsulated waterproof counter. Reading not obstructed by condensation of the transparent cover
Counter can be rotated to any position for easy reading
Built-in pulse contact (with cable 2 m) cast in a waterproof enclosure and easily replaceable
Max. contact load 24 V (SELV) 0.2 A
The outlet is prepared for installing a non-return valve (DVGW approved)
Special version hard nickel-plated available
