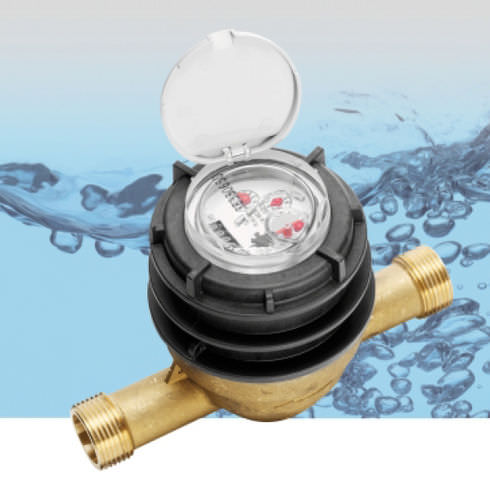

Wet dial water meter CORONA MCI 108

multi-jet vane wheelresidential

Features: Modular multi-jet domestic capsule meter with inductive scanning (without magnetic influence) System capability, with standard applicable pulse output 1 l/pulse (inductive). CORONA MCI can be externed in any way - with IZAR RADIO COMPACT 868 I (radio module) or IZAR PULSE I (pulse transmitter) Only the complete measuring insert needs to be replaced regularly at the end of the calibration period - the meter housing remains fitted in the pipeline With composite screw head. Advantage: lower adhesion, no deposit, lower weight For easier reading, the zero point of the dial can be adapted to the direction of flow by turning the measuring capsule 90° to either side during installation A DIN DVGW-approved non-return valve can be installed in the meter housing as option Mounting position - housing horizontal: horizontal (R 40 - 160) and vertical (R 40) Mounting position - housing rising pipe: vertical (R 40 - 160)
