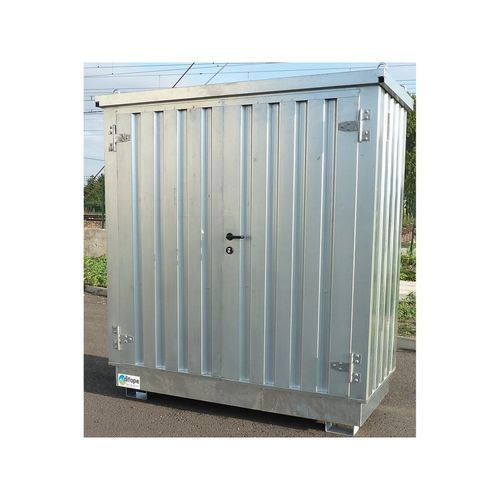

Steel storage shelter BUNG2MPF-1MP

galvanized steel framewith bundwith frame

Presentation
Storage shelter in hot-dip galvanized steel 2 m x 1 m with a retention volume of 350 L. Installed outdoors, this unit permits secure storage of chemicals, phytosanitary products, household hazardous waste and other dangerous or polluting substances.

Main features

• Hot-dip galvanized steel retention sump
• Floor with removable gratings
• 2 front swing doors (870 mm each — 1760 mm total opening) with lock and Euro cylinder
• Palletized base in hot-dip galvanized steel after welding, with sleeves for fork entry (forklift unloading)
• 4 lifting eyes
• 2 lateral ventilation grilles (high and low)

Dimensions and volume
External dim: 2073 (L) x 965 (W) x 2421 (H) mm
Internal dim: 1995 (L) x 841 (W) x 2040 (H) mm
Retention volume: 350 litres

Weight and capacity
Floor height: 220 mm
Weight: 305 kg
Permissible load: 1000 kg/m2

Optional equipment

• Shelves: 1000 or 1750 mm (L) x 500 mm (W) — from 1 to 4 levels depending on container heights
• Continuous-flow fan
• Aluminium checker-plate access ramp
• Power supply enclosure
• Energy-saving lighting with presence detector
• HDPE lining inside sumps for storage of corrosive products

Use
Storage cabinet intended for household hazardous waste, specific hazardous wastes and other dangerous products for secure outdoor storage.

Manufacturing and warranty
Factory assembled and manufactured in France. 5-year warranty against manufacturing and corrosion defects under normal use.

Characteristics / technical specifications

• Reference: BUNG2MPF-1MP
• Materials: walls in galvanized steel; retention sump in hot-dip galvanized steel
• Floor: removable gratings
• Doors: 2 swing doors, 870 mm each (total opening 1760 mm)
• Lock: Euro cylinder
• Base: palletized in hot-dip galvanized steel, sleeves for fork entry
• Lifting eyes: 4
• Ventilation: 2 lateral grilles (high and low)
• External dim: 2073 x 965 x 2421 mm
• Internal dim: 1995 x 841 x 2040 mm
• Retention volume: 350 L
• Floor height: 220 mm
• Weight: 305 kg
• Permissible load: 1000 kg/m2
• Options: shelves, continuous-flow fan, aluminium access ramp, power supply enclosure, presence-detector lighting, HDPE inner lining
