Hazardous materials container CONT6M1NIPC-EI120

for chemicalsstoragefor liquids

Presentation

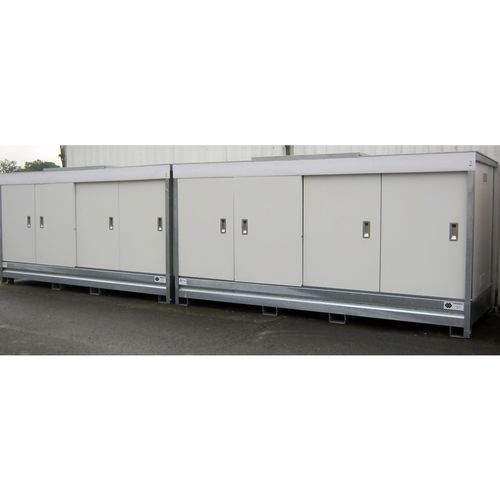

Fire-resistant storage container EI120 (2 hours) ref. CONT6M1NIPC-EI120. Insulated 6 m single-level module for outdoor storage of drums and barrels containing flammable or polluting liquids. Supplied with 2 retention sumps fitted with galvanized steel grating.

Use

• Outdoor storage of hazardous, flammable and polluting substances
• Designed for storage of drums and barrels at risk of leakage

Main features

• Fire rating EI120 (2 hours) / REI120
• 6 m storage module, single level
• 2 sliding doors, 3 m each, with lockable closure
• 2 retention sumps (2 x 1000 L) with galvanized steel grating
• 120 mm M0 sandwich panels for walls and doors
• Roof and floor insulated with M0 rock wool
• Mechanically welded hot-dip galvanized supporting base frame
• White cladding RAL 9002 with blue RAL 5017 trim
• 100 mm forklift skids + lifting eyes
• Factory-mounted equipment
• Manufactured in France

Dimensions and retention

• External dimensions: 6280 x 1669 x 2719 mm (H)
• Usable internal dimensions: 6040 x 1330 x 1854 mm (usable height)
• Retention capacity: 2000 L (2 x 1000 L)

Performance & loads

• Net weight: 2100 kg
• Load capacity: 3500 kg per level

Construction & materials

• Galvanized steel roof
• Pre-painted electro-galvanized steel sheet panels
• 120 mm M0 sandwich panels for walls and doors
• M0 rock wool insulation for roof and floor
• Hot-dip galvanized steel grating in retention sumps

Product reference
Ref. CONT6M1NIPC-EI120

Technical characteristics / specifications

• Type: Insulated fire-resistant storage container
• Fire rating: EI120 (2 hours)
• Configuration: single level
• Doors: 2 sliding doors 3 m each with lock
• Retention sumps: 2 x 1000 L (galvanized steel grating)
• External dimensions: 6280 x 1669 x 2719 mm
• Usable internal dimensions: 6040 x 1330 x 1854 mm
• Total retention: 2000 L
• Empty weight: 2100 kg
• Load capacity per level: 3500 kg
• Materials: pre-painted electro-galvanized sheet, 120 mm M0 sandwich panels, M0 rock wool
• Finish: white cladding RAL 9002, blue trim RAL 5017
• Assembly: factory-mounted
• Origin: Manufactured in France
