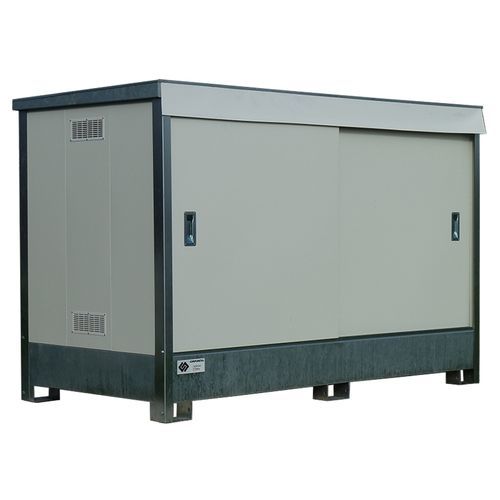

Construction site storage box CONT3MIPC-EI120

Overview
Fire-rated storage container EI120 (2-hour fire resistance): 3 m insulated module equipped with an integrated retention sump and hot-dip galvanized steel grating. Designed for outdoor storage of drums and jerrycans containing flammable liquids. Fitted with two 1.50 m sliding doors with lock. Walls and doors consist of 120 mm M0 sandwich panels; roof and floor insulated with M0 rockwool.

Key features

• Fire-rated cabinet 2H - EI120/REI120
• Insulated storage module 3 m, single level
• Retention sump with hot-dip galvanized steel grating
• 2 sliding doors 1.50 m; locking system
• Walls and doors: 120 mm M0 sandwich panels
• Roof and floor: M0 rockwool insulation
• Galvanized steel roof; pre-coated electro-galvanized sheet metal walls
• White cladding RAL 9002, blue trim RAL 5017
• Mechanically welded supporting base in hot-dip galvanized steel
• 100 mm feet and lifting rings
• Factory-assembled / Made in France

Usage
Designed for secure outdoor storage of hazardous and flammable products in drums or jerrycans. Integrated retention sump allows containment of liquids (1000 L).

Characteristics / technical specifications

• Product reference shown on site: CONT3MIPC-EI120
• Type: Insulated fire-rated storage container 2 hours (EI120 / REI120)
• Number of levels: 1 level
• External dimensions: 3280 x 1669 x 2719 mm (height)
• Usable internal dimensions: 3000 x 1330 x 1854 mm (usable height)
• Retention: 1000 litres (sump + hot-dip galvanized steel grating)
• Weight: 1500 kg
• Load capacity: 3500 kg
• Sandwich panel thickness: 120 mm (M0)
• Roof and floor: M0 rockwool insulation
• Materials: galvanized steel roof, pre-coated electro-galvanized sheet metal walls
• Closures: 2 sliding doors 1.50 m with lock
• Cladding finish: white RAL 9002, blue trim RAL 5017
• Structure: mechanically welded supporting base in hot-dip galvanized steel
• Handling elements: 100 mm feet and lifting rings
• Packaging: factory-assembled
• Manufacture: France
