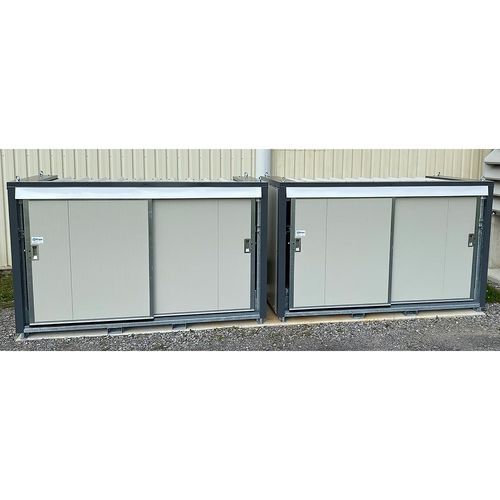

Hazardous materials container CONT3M2NIPC-EI120

for chemicalsstoragefor drums

Description Fire-rated storage container EI120 (2-hour fire resistance) in an insulated 3-metre module on two levels, designed for outdoor storage of drums and barrels of flammable and polluting liquids. Fitted with 2 retention sumps with hot-dip galvanized steel grating and 2 sliding doors of 1.50 m with key lock. Walls and doors are made of 120 mm M0 sandwich panels; roof and floor insulated with M0 rockwool.

Main features

• Fire-rated cabinet/container 2H - EI120 / REI120
• Two-level storage container
• 2 sliding doors 1.50 m with key lock
• 2 retention sumps of 1000 L each with hot-dip galvanized steel grating
• Galvanized steel roof, pre-coated electro-galvanized sheet walls
• White cladding RAL 9002, blue trim RAL 5017
• Mechanically welded supporting base in hot-dip galvanized steel
• Walls and doors: 120 mm M0 sandwich panels
• Roof and floor: M0 rockwool
• Forklift pockets for handling
• Lifting lugs for handling
• Made in France

Dimensions and retention

• External dimensions: 3280 x 1669 x 3678 mm (height)
• Usable internal dimensions: 2920 x 1330 x 1295 mm (Level 1) + 1296 mm (Level 2)
• Retention: 2000 L (2 x 1000 L)
• Weight: 2000 kg
• Load capacity: 3500 kg per level

Product reference CONT3M2NIPC-EI120

Technical characteristics / specifications

• Type: insulated fire-rated storage container
• Fire rating: EI120 / REI120 (2 hours)
• Levels: 2
• Access: 2 sliding doors 1.50 m
• Materials: pre-coated electro-galvanized sheet, M0 sandwich panels, M0 rockwool
• Integrated retention: 2 sumps of 1000 L with galvanized steel grate
• Handling: forklift pockets, lifting lugs
• Permissible load per level: 3500 kg
• Empty weight: 2000 kg
• Manufacture: France
