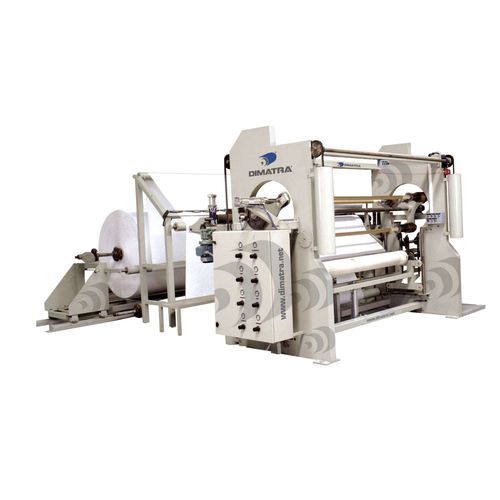

Paper rewinder-winder

motorizedroller

Turret Rewinder Description High productivity machine because of its turret to rewind paper (big format printer rolls) and nonwoven doesn’t need shaft in the rewinding section. Process - Unwinder with pneumatically retractile chucks, brake system and air shaft. - Peripheral rewinding system with two support rolls and riding roll. - Turret system with three positions for a quick change of finished rolls and new cardboard core insertion. - Retractile chucks system avoids using rewinding shaft. - PLC sequence controlled system and pressure control cabinet. Options - Edge trimmer. - Guiding system. - Shaftless unwinder. Technical Specifications - Maximum unwinder diameter: 47" (1,200 mm). - Standard width: 39" and 83" (1,000 mm and 2,100 mm). - Maximum speed: 1,148.29 FPM (200 m/min). - Maximum finished rolls diameter: 18" (450 mm). Services - Training. - Installation. - Spare parts sales. - Preventive maintenance. - Troubleshooting hotline.
