Bending beam load cell LMDK
in-linestrain gaugeanalog

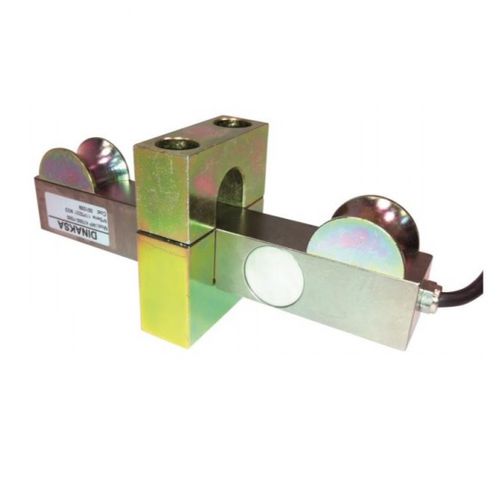

Bending beam load cell - LMDK - DINAKSA PESAJE - in-line / strain gauge / analog
Bending beam load cell - LMDK - DINAKSA PESAJE - in-line / strain gauge / analog
Add to favorites
Compare this product

Characteristics

Type
bending beam
Form
in-line
Technology
strain gauge
Output signal
analog
Applications
for cranes, for wire rope tension
Other characteristics
precision, stainless steel, steel construction, nickel-plated, high-capacity, high-sensitivity, with amplified output, custom, oil-resistant, with mounting flanges, with data logger, corrosion-resistant, IP66
Rated load

Max.: 20,000 kg
(44,092.45 lb)

Min.: 3,500 kg
(7,716.18 lb)

Length

188 mm, 400 mm
(7.402 in, 15.748 in)

Height

Max.: 42 mm
(1.65 in)

Min.: 26 mm
(1.02 in)

Description

The load cell - LMDK has a capacity from 3,500 to 20,000 kg. and maximum cable diameter 42 mm. It is indicated for limiting loads on overhead cranes, tower cranes, elevators, hoists, etc. The information is collected in the Lim-E725 box, which allows you to monitor the weighings and export the data in various formats (see Lim-E725 Limiter file). Characteristics: Load cells designed for the measurement of loads on steel cables. Made of high-strength aluminum. Capacity according to need. 5 to 15 Vdc power supply. Sensitivity approx. 1.5 mV / v Zero tolerance setting 2% F.S. Load limit without losing characteristics 200% F.E. Breaking load> 300% F.E. IP66 protection Supplied with 5 meters of cable.

Catalogs

LMDK
LMDK
1 Pages
