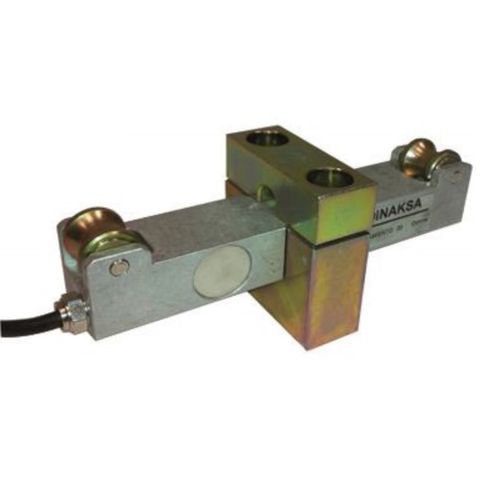

Bending beam load cell ADKin-linestrain gaugeanalog
Add to favorites
Compare this product
Characteristics
- Type
- bending beam
- Form
- in-line
- Technology
- strain gauge
- Output signal
- analog
- Applications
- for crane, for wire rope tension
- Other characteristics
- precision, stainless steel, steel construction, nickel-plated, high-sensitivity, oil-resistant, with amplified output, custom, with mounting flanges, with data logger, IP66, corrosion-resistant
- Rated load
Max.: 10,000 kg
(22,046.23 lb)Min.: 1,000 kg
(2,204.62 lb)- Length
125 mm, 185 mm
(4.921 in, 7.283 in)- Height
Max.: 31 mm
(1.22 in)Min.: 29 mm
(1.14 in)
Description
The ADK load cell has a capacity range from 1.000kg up to 10.000kg and 30mm maximum cable diameter. It is indicated for load limiting in gantry crane, tower cranes, lifts, elevator, forklifts, etc…
TECHNICAL DATA
Load cells designed for the measuring of loads on steel cables.
High strength aluminium made.
Customized capacity (as needed).
Power source 5-15 Vdc
Sensitivity 1.5mV/V approx.
Zero tolerance adjustment 2% F.E.
Load limit without losing features 200% F.E.
Breaking load>300% F.E
IP66 protection
Five meters of cable is supplied.
Connected to Lim E-725
Supplied with 5 m cable (ask if longer is needed)
