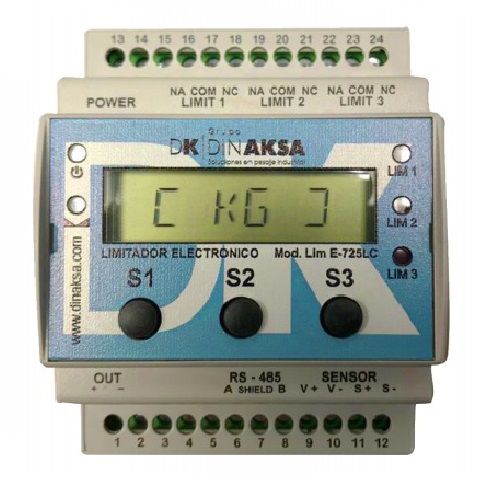

Electronic load limiter LIM-E725

for cranesfor overhead cranesfor hoists

The LIM-E725 electronic load limiter prevents overloads that occur in hoists, overhead cranes, cranes, hoists, elevators, etc. It has a totally new electronics that significantly increases security for your equipment and staff. Characteristics: * Programmable in overload (mandatory according to European regulation 2006/42 / CE-4.2.2 Load control), summation of loads (mandatory according to regulation EN-15011), loose cable, trip delay, timer relay ... * Power supply 85-264Vac. 47-440Hz (Optional 24-48Vac, 50Hz) * 3 programmable outputs with potential free switched relay (6 A / 250Vac.) And timer. * 3 programming buttons (S1, S2, S3) * LCD display with 5 digits of 5 mm * 5 status indicators (On, stability, 1-2-3 limit trip) * Sensor input in mV * Communication with up to 9 devices via BUS rs-485 * Communication with outdoor displays and other DK Dinaksa control or visualization elements, warning lights, acoustic signals, etc. * Inputs and outputs for multiple applications. * Installation on DIN rail * Measurements: 90mm x 72mm x 70mm * Working temperature -20ºC to + 60ºC Options: * Sensor input at 4-20mA * Output 4..20mAm, 0..20mA, 0..5V, 0..10V for the control of the crane through PLC’s (Siemens, Omron). * RS-232 output for connection with PROFIBUS DP module * Communication with internal or external equipment via radio or Wifi * Custom programming Our technical office department will be in charge of advising you in the search for the most suitable solution based on your needs. Ask us about your specific needs.
