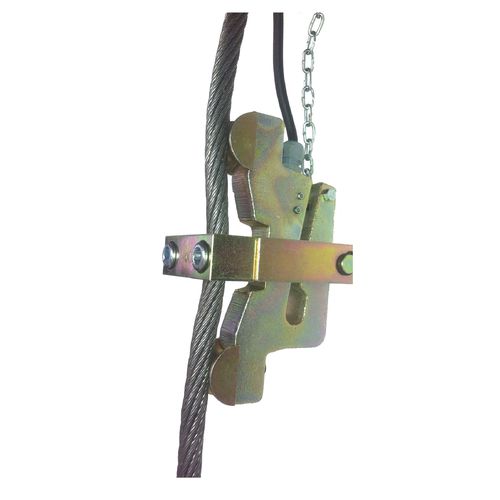

Mechanical load limiter LIM-214

Mechanical load limiter especially indicated to prevent overloads in single-trolley, double-trolley, double-hook overhead cranes ... Elevators, hoists, lifting equipment, automatisms ... The limiters are specially designed to prevent and avoid overloads that can occur in lifting devices such as bridge cranes, cranes, hoists, elevators, etc. These devices allow savings in maintenance costs caused by breaks in cables, hooks, wheels, rails, deformation of beams, etc. Increases company safety, avoiding overload accidents. Characteristics: * Compact design mechanical load limiter. * Programmable in overload (mandatory according to European regulation 2006/42 / CE - 4.2.2 Load control). * Maximum branch capacity limited to 9,500kg. * Made of high strength tempered steel * Bichromate finish * Accuracy: ± 1% of maximum capacity * Working temperature: from -20 to 70˚C * Tightness according to IP 67 standard * Anti-fall safety device * Snap action swtches - 10A 125 / 250Vac - -40 to 80˚C * According to EN61058-1 (10,000cy) * According to UL1054 (6,000 cy) National manufacturing with accredited metrological control nº 01M042 Options: * Stainless * Atex Fields of application: * Single carriage, double carriage, double hook overhead cranes, ... * Elevators, hoists, lifting equipment, automatisms ... * Our technical office department will be in charge of advising you in the search for the most appropriate solution based on your needs. * Ask us about your specific needs
