Suction hose SANS020
for waterfor chemical productsalcohol

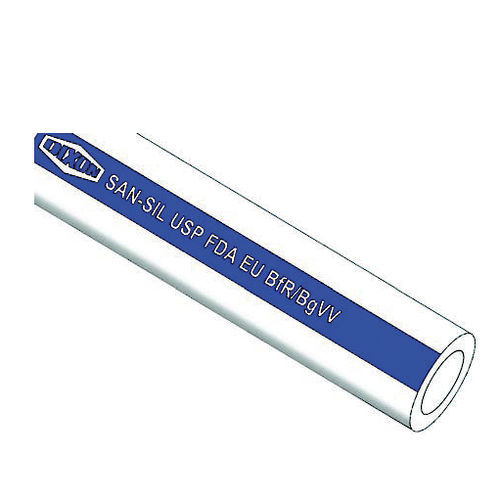

Suction hose - SANS020 - DIXON GROUP EUROPE - for water / for chemical products / alcohol
Suction hose - SANS020 - DIXON GROUP EUROPE - for water / for chemical products / alcohol
Suction hose - SANS020 - DIXON GROUP EUROPE - for water / for chemical products / alcohol - image - 2
Add to favorites
Compare this product

Characteristics

Use
for water, for chemical products, alcohol, beverage, for wine, for milk
Material
silicone
Applications
suction, for chemical applications, for food industry applications, food, for the pharmaceutical industry, for the food industry, sanitary, industrial
Other characteristics
flexible, smooth, transparent
Inner diameter

Max.: 102 mm
(4.016 in)

Min.: 13 mm
(0.512 in)

Outer diameter

Max.: 114 mm
(4.488 in)

Min.: 25 mm
(0.984 in)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 3 bar
(43.511 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)

Description

DIXON Silicone Suction & Delivery Hose Application : For use in Pharmaceutical, food & beverage applications in health and personal care industries Cover : Translucent seamless extruded silicone, Platinum cured Approvals : FDA 21 CFR 177.2600; USP CLASS VI Reinforcement : Polyester fabrics, 316L stainless steel helix Lining : FDA approved transparent seamless smooth silicone, Platinum cured Temperature :From -40°C to +200°C Safety Factor : 4:1
