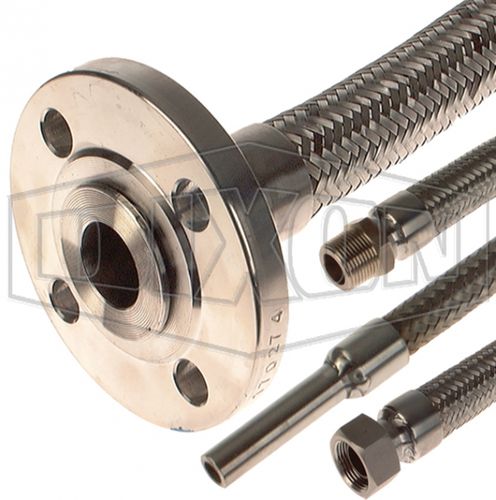

Water hose ADFLEXDN

stainless steelPTFEindustrial

Bend Radius - dynamic: 100mm, static: 25mm dynamic: 100mm, static: 25mm Available Options Hoses manufactured as an assembly to customer specification. Description Corrugated flexible metal hose assembly meeting the requirements of class 1 of the EN ISO 10380 standard. Features Dimensions ID/OD Tolerance +/- 1.0mm. De-rating factors may apply for elevated temperature applications. Note Hose specifications may be subject to change without prior notice. Hose specification data sheets are available on request please consult customer service. Hose pressures are indicative only, please confirm with customer service. Specifications Corrugated Hose - AISI: 316L, DIN: 1.4404, EN: X2 Cr Ni Mo 17-12-2 Corrugated Hose - AISI: 321, DIN: 1.4541, EN: X6 Cr Ni Ti 18-10 Braid - AISI: 304, DIN: 1.4031, EN: X5 Cr Ni 18-10 Pressure Equipment Directive - Dixon has made considerable investment in it’s extensive in-house hose assembling capabilities, under pinned with a traceable Quality System in accordance with BSEN ISO 9001:2000 and compliance with PED 2014/68/EU.
