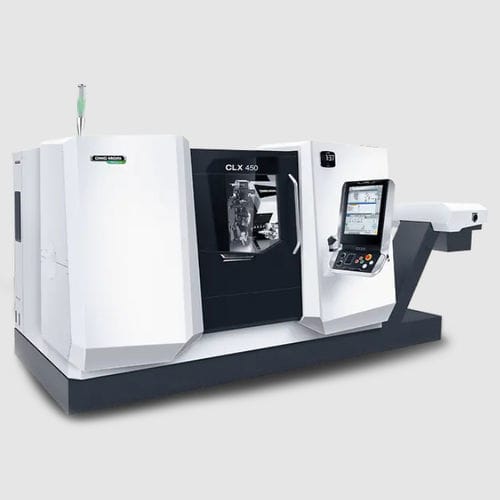

CNC turning center CLX 450

for metaluniversalcompact

Complete machining of complex parts thanks to Y-axis Highly dynamic spindle drive 25,5 kW (40% DC) and 426 Nm (40% DC) with max. speed up to 4.000 rpm 6-sided complete machining due to counter spindle with integrated spindle motor, speed up to 5,000 rpm / 14 kW (40% DC) / 192 Nm (40% DC) Y axis with travel range ± 60 mm for superior milling operations, i.e. for complete lateral surface machining More efficiency for machining with a bar feeder Bar capacity ø80 mm in standard! Optional part catcher for parts up to ø80 x 200 mm and weight 4 kg Automation interface according to DMG MORI standard compatible with most bar feeders (option) Compact design with large working area for the machining of customized parts Machining of parts with diameter up to ø400 mm Travel in Z axis 830 mm Small foot print 6,7 m2 Direct measuring system in standard NEW: IoTconnector for digitized and connected production processes DMG MORI NETservice and MESSENGER preinstalled Specially preconfigured for your machine prior to delivery Integrated firewall with automatic updates guarantees maximum protection 3D controls with the unique 19" SLIMline multi-touch control panel and SIEMENS or 19" SLIMline touch control panel and FANUC. Create your own individual solution! 19" DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation 19" DMG MORI SLIMline touch control panel and FANUC for 3D simulation with easy contour verification DMG MORI SMARTkey: Personalized with 8 GB additional storage
