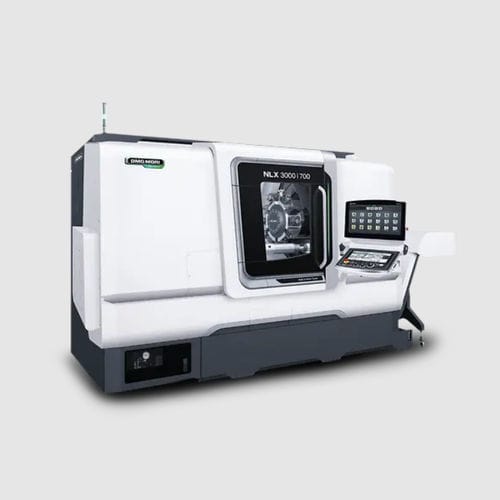

CNC turning center NLX 30003-axismillingwith turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Other characteristics
- milling, with turret, high-precision, high-performance, high-speed, high-rigidity
- Diameter
430 mm
(16.93 in)- Spindle speed
10,000 rpm
(62,831.853 rad.min-1)- Maximum part length
3,123 mm
(123 in)- Bar capacity
102 mm
(4 in)- Axe X
280 mm
(11 in)- Axe Z
3,170 mm
(125 in)- Maximum torque
40 Nm
(30 ft.lb)
Description
Improved milling power
BMT (Built-in Motor Turret) installed in the turret
High-speed rotary tool spindle: 10,000 min-1
Max. rotary tool spindle torque: 40 N·m (29.5 ft·lbf), 100 N·m (73.8 ft·lbf) (2000 type / 3000 type)
High precision
Thoroughly controlled thermal displacement: Coolant circulation in machine body as standard (700 type / 1250 type)
Machining precision improved by heat-controlling structure
High rigidity
Slideways on X-, Z-, and Y-axis for higher vibration damping performance and dynamic rigidity
Operability
Digital tailstock driven by a servo motor (700 type / 1250 type)
Programmable tailstock (2000 type / 3000 type)
