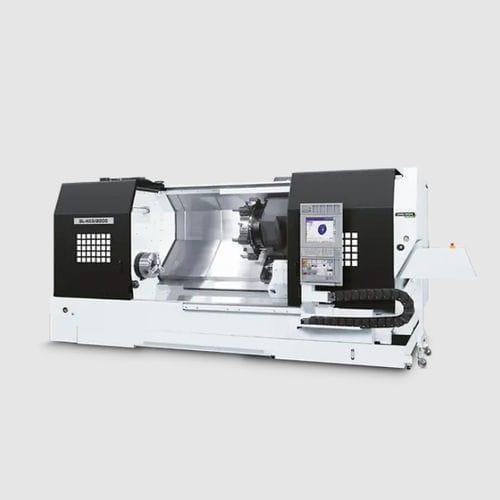

CNC turning center SL 403

2-axiswith turrethigh-precision

Spindle/Superior rigidity Oil chiller included as standard equipment (C-type) The spindle drive utilizes a highoutput, high-torque AC spindle motor that can handle heavy and/or continuous cutting of a variety of workpieces. Single body bed and legs for high twisting and bending rigidity. Turret / Feed Turret indexing time 0.4 sec. (1-station) Rapid traverse rate X-axis: 20 m/min (787.4 ipm) Z-axis: 24 m/min (944.9 ipm) Ideal for shaft workpieces Max. turning diameter: 620 mm (24.4 in.),650 mm (25.5 in.) Max. turning length : 958 mm (37.7 in.) , 2,158 mm (84.9 in.) Tailstock travel: 850 mm (33.5 in.),2,000 mm(78.7 in.)
