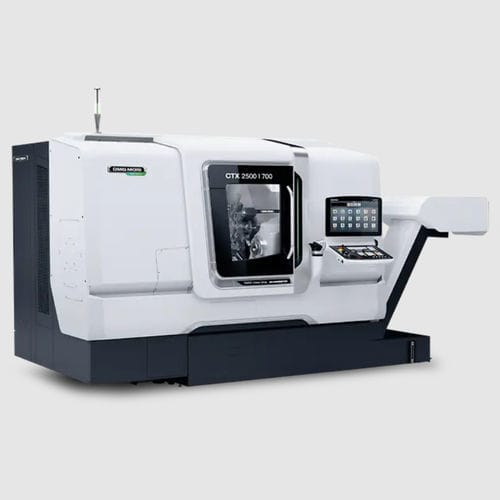

CNC turning center CTX 2500

3-axis12 toolsuniversal

Newly revised 12 station turret with 6,000 rpm and VDI interface as standard High Precision Turret for the highest accuracy with 6,000 rpm, 10 kW and 36 Nm Main spindle with 4.000 rpm and 525 Nm in standard and 3.500 rpm and 1.194 Nm optionally available Complete machining by optional counter spindle and star turret Counter spindle with up to 5,000 rpm, 32 kW and 360 Nm torqueDRIVE turret for powerful machining with 6,000 rpm, 23,5 kW and maximum torque of 85 Nm speedDRIVE Revolver for the highest demands with 12,000 rpm, 20 kW and a maximum of 56 Nm of torque optional available Machining of workpieces up to Ø 430 mm turning diameter and up to 1284 mm turning length Circular diameter up to 700 mm Bar machining of workpieces up to Ø 104 mm Outstanding robustness and maximum machine rigidity Maximum stability and long-term accuracy Guideways with 80mm width for higher vibration damping performance and dynamic stiffness Coolant circulation for all cast components for a uniform temperature shift
