Transfer table

Overview
Table shifting devices from Doka enable faster slab forming by eliminating crane operations for many horizontal and vertical repositioning tasks. This simplifies site logistics, reduces waiting times and frees crane capacity for other operations, accelerating the overall workflow and lowering labour costs.

Key benefits

• Faster workflows: optimises site logistics by reducing crane usage and crane time; enables independent table handling at height with self-climbing or ground-supported systems.
• Improved safety: repositioning possible from floor level; perimeter fall-arrest protection on TLS; designed for safe operation up to wind speeds of 72 km/h (system-dependent).
• Cost reduction: quick table positioning with fewer personnel; horizontal repositioning of table areas up to 12.5 m² by one operator; craneless vertical repositioning to the next floor in approx. 20 s with TLS.

Horizontal shifting — main products

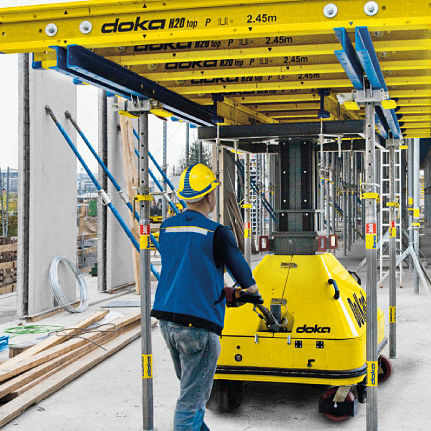

DoKart plus

• Compact, manoeuvrable unit for everyday site use enabling ergonomic, single-operator shifting of Doka tableforms.
• High load capacity for typical table formats; lift speed for tableforms approx. 8 cm/s.
• Design features: large wheels, generous ground clearance and solid baseplate for reliable site operation; can move sideways and rotate around its centreline to shorten manoeuvres.

Doka shifting trolley (DF)

• Hydraulically lowered and driven trolley for craneless horizontal repositioning of tableforms and accessories up to 12.5 m² by one operator.
• Compact drive unit reduces manual effort and speeds site workflows.

Vertical by crane — key components
Transport fork DM (adjustable)

• Example carrying capacities available (e.g. 1,500 kg, 2,500 kg) with adjustable fork widths to fit table formats.
• Folds for site transport; latch-type anti-slide-off guards ensure safe jib insertion and lifting.

Dokamatic lifting strap & loading platform

• 13.00 m Dokamatic lifting strap for hoisting tableform superstructures and ready-to-use tables; designed for easy fixing and detaching from ground level.
• Loading platforms permit quick transfer of Dokamatic tables to the next level when used with the lifting strap.

Vertical without crane — Table Lifting System TLS

• TLS enables crane-independent vertical repositioning, saving crane time and accelerating construction progress.
• Non-stop repositioning cycles and automatic operation mode allow efficient repositioning at the push of a button.
• TLS can be used from ground level (start from first storey) or as a suspended self-climbing unit for work at any height; installed and anchored by certified personnel with inward-opening landing gates and safety buttons per storey.
• Slip-proof, weather-resistant platform decking and perimeter fall-arrest protections ensure stable and safe operation.

References (selected)

• Casa BFF
• Crescent Development Project
• Banco de la Nación
• W Hotel
• European Central Bank (ECB), Frankfurt
• Petronas Tower 3

Technical specifications (overview)

• Horizontal table area repositionable by one operator: up to 12.5 m² (system and accessories dependent).
• DoKart plus lift speed (example): approx. 8 cm/s.
• DoKart plus / DoKart load capacity: typical values in documentation (e.g. ~1,950–2,000 kg depending on model).
• Transport fork DM carrying capacities: model-dependent (examples: 1,500 kg; 2,500 kg) with adjustable fork widths.
• Dokamatic lifting strap length: 13.00 m.
• Craneless vertical repositioning time with TLS: approx. 20 s to the next floor (configuration-dependent).
• TLS operational wind condition: repositioning possible up to 72 km/h (system-dependent and subject to local rules).
• Accessories, user instructions and operating documents provided per system.
