Slab formwork panel Dokadek 20

Product overview
Beam-less, hand-set floor formwork Dokadek 20 for efficient forming of slab floors. Designed for slab thicknesses up to 25 cm and floor heights up to 3.30 m. Panels available in 1.00 x 2.00 m and 0.66 x 2.00 m sizes (large panel area 2 m²).

Safe working conditions

• Panels can be set from ground level to minimise working at height.
• Integrated form-facing and built-in anti-liftout guard simplify safe dismantling.
• Infill zones with openings up to 13 cm closed quickly with the double alu-beam tec-2.
• Compatibility with the Doka edge protection system XP enhances site fall protection.

Ergonomic work environment

• Reduced system weight per m² improves handling and cycle times.
• Maximum weight to be lifted by a worker is 17 kg to limit strain.
• Panels are easily tilted up from ground level to support an upright working posture.
• Minimal overhead work during forming and stripping reduces ergonomic load.

Rapid construction progress

• High forming rate thanks to large 2 m² panels.
• Manual set-up reduces crane dependency and speeds up erection.
• Efficient solutions for infill zones save time on site.

System

• Dokadek panels: Galvanised, yellow coated steel frame with formwork sheet for long service life; available in 1.00 x 2.00 m and 0.66 x 2.00 m.

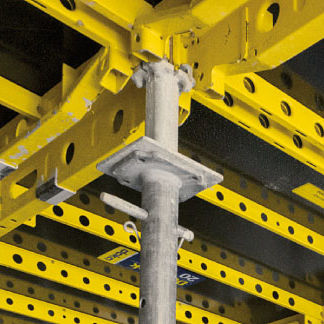

• Dokadek support head: Standard head with integral anti-liftout guard to hold panels securely and avoid additional temporary bracing.
• Floor prop Eurex top: Floor prop with impact protector and easy-to-turn adjusting nut; lightweight; consistent load capacity of at least 20 and/or 30 kN in accordance with EN 1065 – Class D/E.

Utilisation

• Back-friendly working from ground level with reduced bending and minimal overhead tasks during stripping.
• Pre-defined assembly sequence ensures consistent safety and prevents risky improvisation; no pre-dimensioning of the system required due to prop arrangement.
• Closing small infill openings (up to 13 cm) is done with the double alu-beam tec-2.
• Integration with Doka XP railings improves edge protection and site safety.

Technical specifications

• System type: Beam-less hand-set panel floor formwork.
• Maximum slab thickness: 25 cm.
• Suitable floor heights: up to 3.30 m.
• Panel sizes: 1.00 x 2.00 m and 0.66 x 2.00 m (large panel area 2 m²).
• Frame: Galvanised, yellow coated steel frame with formwork sheet.
• Maximum lift weight per worker: 17 kg.
• Integrated plate supports and anti-liftout guard in support head.
• Infill zones up to 13 cm closed with double alu-beam tec-2.
• Compatibility: Doka edge protection system XP.
• Props: Eurex top – impact protector, easy-to-turn adjusting nut; load capacity ≥ 20 and/or 30 kN (EN 1065 – Class D/E).
