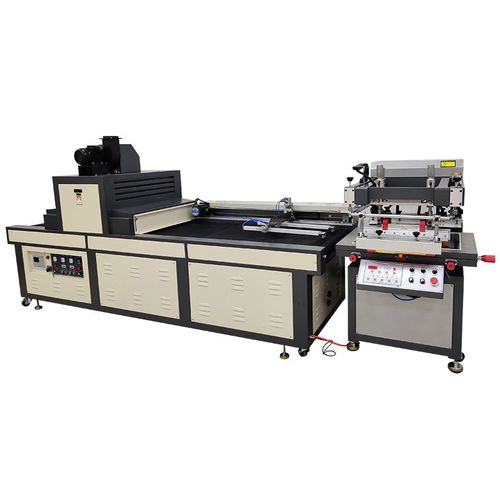

Automatic screen printing machine GW-6090X-UV
monochromefor the plastics industryfor the paper industry

automatic screen printing machine
automatic screen printing machine
automatic screen printing machine
automatic screen printing machine
Add to favorites
Compare this product


Characteristics

Control
automatic
Color
monochrome
Applications
for the plastics industry, for the paper industry
Other characteristics
high-speed, vacuum, large-format, fully-automatic, with UV curing system
Printing speed

Max.: 1,500 p/h

Description

Application: It is a big size vertical flat screen printing machine with auto unloading device and UV curing machine, It is suitable for printing PVC, it can only print film sheet, pvc sheet, pp sheet, paper,key film, plastic sheet . and high precision screen printing within printing area 600*900mm Function: 1.Tilted-arm structure, The forward/backward action of printing head is drived by electromotion 2.SCM controlled circuit,printing and screen plate up/down adopts independent driver source 3.Frequency conversion motor drives printing knife rest,magic eye controls strock distance,independent adjustment 4.There are average air intakes on high -hardness Worktable, 5.Power vacuum adsorption,make sure accurate color registration 6.There are three kinds of models,such as manual.semi-automatic and full-antomatic,printing indirect time is conrolled by figure 7.independently designing machine head up/down equipment,it is convenient to replace scraper,ink covering blades and frame and easy to clean screen frame 8.Double guide rod left/right screen arm,and equipt plate distance adjustale equipment,easily adjust 9.This machine is with UV drying machine and automatic unloading system Technical parameter: 1.Max.printing area:600*900mm 2.Max.printing speed:1000PCS/Hr 3.Power:380V/50HZ 4.Air pressure:5-7bar 5.Worktable size:700*900MM 6.Max.workpiece height:0-20mm 7.Number of Color: single color UV curing machine UV lamps: 5.6KW*2PCS Conveyor width: 800mm Machine length: 3000mm
