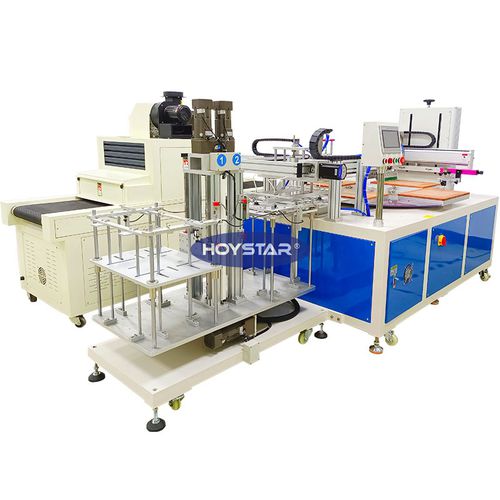

Automatic screen printer GW-PL-Afully-automaticfor cutting matswith touchscreen
Add to favorites
Compare this product
Characteristics
- Control
- automatic, fully-automatic
- Applications
- for cutting mats
- Other characteristics
- with touchscreen
- Printing speed
1,000 p/h
Description
PVC Printing Full Automtic Screen Printing Machine for PVC sheet/Metal Sheet/Aluminum Sheet GW-PL-A
Technical Parameter (screen printing machine)：
1) Max. printing area: 400*310mm
2) Worktable size: 500*340mm
3) Max frame size: 700*450mm
4) Machine size: 2450*1430*1600mm
5) Weight: 600kg
6) Voltage: 220V/4KW
Technical Parameter (UV curing machine)：
1) Conveyor belt width: 50cm
2) Inlet length: 50cm
3) Outlet length: 50cm
4) Chamber length: 100cm
5) Total wattage: 6 KW
6) Lamp wattage: 3KW×2pcs
7) Wave length : 365nm
8) Conveyor speed: 0~10m/min(can be adjustable)
9) Max height of production: 75 mm
10) Machine size: 2000×660×1500 mm
11) Machine weight: 180kg
12) Power:380V
VIDEO
