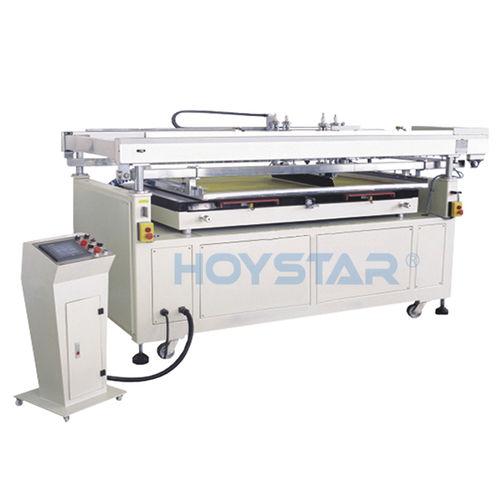

Servo-driven screen printer GW-100140

monochromefor the glass industryfor the paper industry

Large 4 Post Semi Automatic Screen Printing Machine With Vertical Lift Application: It is suitable for printing different material flat items such as textile t-shirts/garment/clothes,plastic sheet,pp/pvc/pe/pet film,paper/leather bag,glass,ceramic tile,arylic/metal/aluminum board,panel,traffic/road/outdoor signage,car stickers......and so on Structures: 1.Loading by artificial,automatic printing.Easy operation,quality assurance. 2.The machine is controlled by Japan mitsubishi PLC and touch screen control panel 3.Pressure is equilibria to make sure printing to be uniformity ． 4.Pneumatic off-grid system,off-grid height can be adjusted to meet printing speed 5.Screen frame has slightly adjustment function 6.Printing driving system adopts import linear guide and synchronous belt,running is steady,frequency conversion stepless speed regulation 7.Worktable is vacuum to make sure high precise printing 8.Printing scraper,ink-reclaiming blade using Taiwan pneumatic components control. 9.It with auto alarming system and perimeter security protect switch to ensure safety in production. Standard Technical Parameter: 1.Max.printing area:1000*1400mm 2.Max.printing speed:500PCS/Hr 3.Power:380V 50Hz 4.Air pressure:0.6-0.8Mpa 5.Worktable size:1100*1500mm 6.Max.sreen frame size: 1200*1600mm 7.Max.workpiece height:50mm 8.Number of Color: single color
