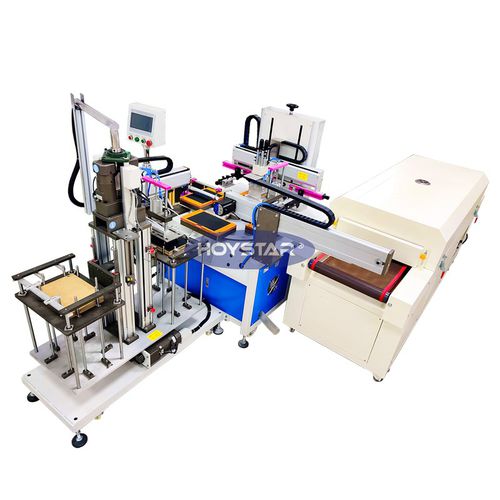

Automatic screen printer GW-PL-A

fully-automatichigh-speed

Application: The machine is special designed for printing cutting mats/blackboard with high speed and automatic. Building up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, The printing speed can be up to 1000pcs/hr Technical Parameter (screen printing machine): 1) Max. printing area: 350*220 mm 2) Worktable size: 400*250 mm 3) Max. frame size: 250*550mm 4) Machine size: 2200*1400*1600mm 5) Weight: 600kg 6) Voltage: 220V Technical Parameter (IR tunnel drying machine): 1) Conveyor belt width： 500mm 2) Inlet length： 500mm 3) Outlet length： 500mm 4) Chamber length： 2000mm 5) Total length of conveyor belt： 3000mm 6）Conveyor belt material: Teflon 7）Conveyor belt speed: 1-10M/mitues 8）Infrared Lamps: 800w*12pcs 9）Temperature: 0-180 degree 10）Machine size: 3000*900*1150mm 11）Machine weight: 260kg 12）Power: 380V
