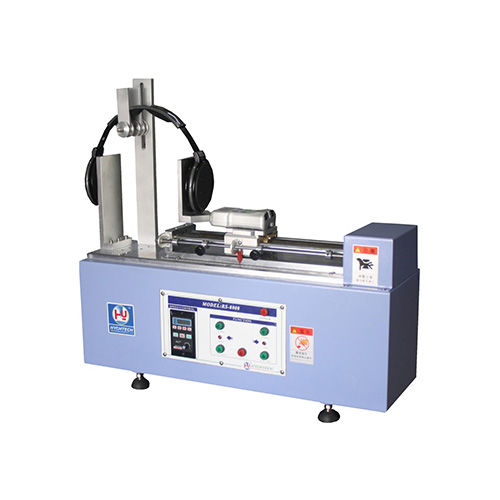

Tensile testing machine RS-8008Hautomaticfor headset
Add to favorites
Compare this product
Characteristics
- Test type
- tensile
- Operating mode
- automatic
- Test material
- for headset
Description
Apply for headphone tensile test,clamping the headphone,fasten one end of earphone, headband clamping on support rod,the other end of earphone fix on the fixture of the digital tensile gauge, control the screw ball move right,the digital tensile gauge will show the tension data(can reserve the max tension),by this way to check the relation between tensile distance and tension once user pull back the headphone onto the head.
Measuring tension capacity: 0-200N
Digital gauge resolution: 0.01N
Load unit: Kg,N, Lb changeable
Measuring speed: 15-300mm/min
Measuring stroke: 0-300mm
Machine dimension: Around W650xD220xH260mm
Machine weight: Around 35kg
Power supply: 1∮ AC220V 3A or designated
