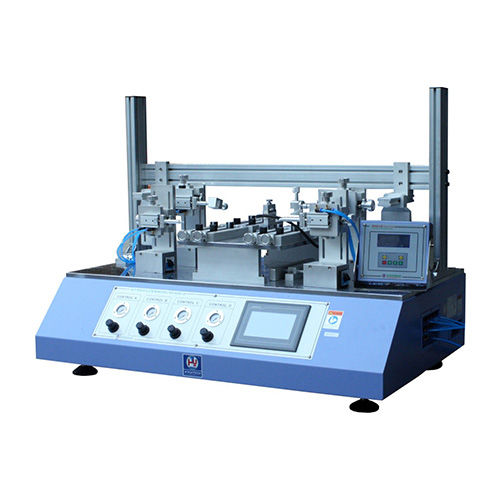

This tester is to simulate to operate the electronic product, it is to click the power button, the buttons on edge of the product, and insert & extract the USB at the USB port, the earphone plug to the earphone port, to check the durability of the buttons on edge and the connection ports, This tester is controlled by touch panel. The parameters setting, editing can be done by the touch panel.
Air cylinders: 4sets
The stroke of Air cylinders: 0-30kk or 0-45mm
The range of testing cycle: 0-999999(set-able)
The speed of hitting/insert&extract: 10-120 cycles/min(Adjustable)
The testing table size: W1100xD450xH300mm
Cylinders installation range: 800x600mm
The force of air cylinders: 100-1500gf (or as designating)
Air source: ≥0.6Mpa
Dimension: W1200xD800xH915mm
Weight: 155kg
Power supply: 1∮ AC 220V, 10A
The Main Specialties:
• 1.Tester is controlled by touch panel, the set-able testing parameters: the time of air cylinders out and withdrawing, sequencing testing (4 sets air cylinders working independently in different time) and simultaneous testing, testing cycles; the testing method can be edited, recoded, and called for use.
• 2.All the action components are from Japan: air cylinders, electromagnetic valve, pressure adjusting valve from SMC, PLC from Mitsubishi.
• 3.The position of air cylinders are adjustable according to the needed testing position, it is designed to be magnet attaching, easy to be moved; the tester can test 4 tables as the size of IPAD at the same time.
