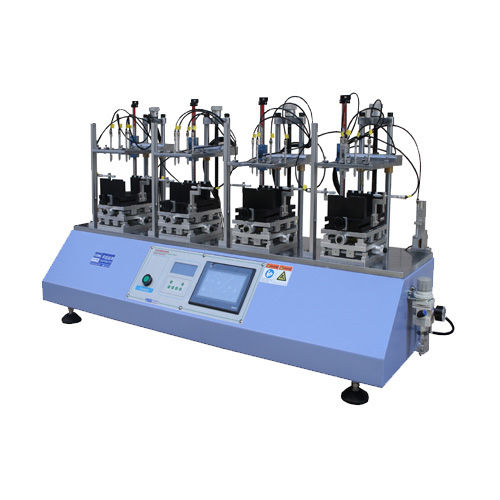

Life cycle testing machine RS-8330A-4

automaticfor mobile phonesbutton

Apply for keystoke (buttons) life-time test for mobile phone, telephone, car entertainment devices, PDA, Bluetooth/ earphone, Automobile TV remote contronller, MP3/CD, the other electronic products and so on. 1.The modes of sorting and same time clicking test can shift, and can simulate the real clicking condition for the key-clicking. 2.Adopt Japan SMC precise pneumatic component, hitting-strength is adjustable and long lifespan. 3.Adopt Mitsubishi touch LCD and PLC program controller. 4.Can test four sets mobile phone or other devices in the same time, any directions of the grips is adjustable, can satisfy to test keystoke of different kinds of products. 5.Can satisfy the testing of backside and front side of mobile phone, with hitting strength calibrating device which can response the anti-clicking ability or keystoke. From left side to right side: 1.Power switch: turn right, power on, turn left, power off. 2.Emergency stop key:press this key while in emergency, return while turning by clockwise. 3.Mitsubishi touch LCD: for program setting and control. 4.Calibrator: for test the load value (clear the data before test)-press “∧”to do unit switching (g, kg, lb,N) ALL ZERO (clear all data), PEAK ZERO—clear the peak data. Operation / Procedure description: The first window after powered on. Press[English system] into English working interface The window shows test & control function for A, B ,C , D 4 locations, take A for example: ●A times display: show the tested times; ●A reset: press “A Reset” to clesr all the tested data;
