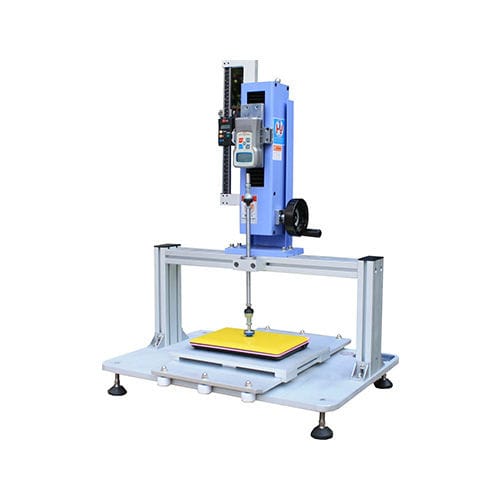

Push-deformation testing machine RS-6100

automaticfor touchscreens

This tester is used for push-deformation test for each part of LCD used in note-book computer, mobile,CD/MP3 and such kinds of IT to check the damage after bearing the different kinds of pressure. It also can test the thin and weak parts of such the product as mentioned above to check the damage and deformation. Model: RS-6100 Test load: 50kgf(max) Z axis up and down stroke: 200mm Stroke tolerance: 0.004mm X-Y moving range: 300x400mm Dimension (WxDxH): 720x850x750mm Weight: 65kg Power supply: AC220V 50HZ 5A or specified by user 1.X.Y and Z axis are movable. It can get the anti-pressing situation of every location of the tested parts and there is no need to move the tested article. 2.There are different kinds of compression features to simulate the different practical circumstances.
