LPG forklift G series
ride-onhandling

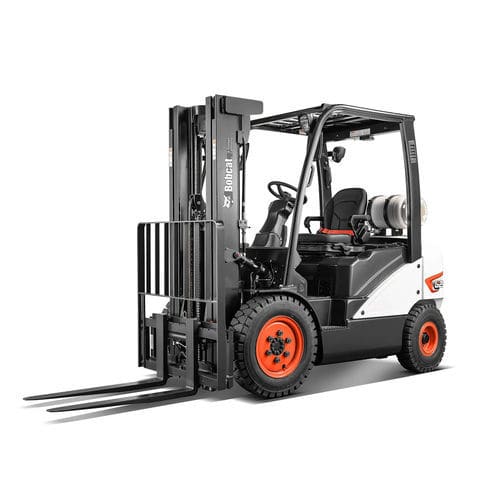

LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling - image - 2
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling - image - 3
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling - image - 4
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling - image - 5
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling
Carrying capacity

2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

Max.: 8,250 mm
(324.8 in)

Min.: 1,800 mm
(70.87 in)

Overall width

1,070 mm, 1,197 mm
(42.1 in, 47.1 in)

Overall length

3,565 mm, 3,630 mm, 3,744 mm, 3,809 mm
(140.4 in, 142.9 in, 147.4 in, 150 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,585 kg, 3,965 kg, 4,390 kg, 4,540 kg, 4,770 kg
(7,903.6 lb, 8,741.3 lb, 9,678.3 lb, 10,009 lb, 10,516 lb)

Axle loading with maximum load front

4,925 kg, 5,645 kg, 6,485 kg
(10,857.8 lb, 12,445.1 lb, 14,297 lb)

Axle loading with maximum load rear

660 kg, 820 kg, 905 kg, 1,030 kg
(1,455.1 lb, 1,807.8 lb, 1,995.2 lb, 2,270.8 lb)

Axle loading without load front

1,495 kg, 1,585 kg, 1,735 kg, 1,815 kg
(3,295.9 lb, 3,494.3 lb, 3,825 lb, 4,001.4 lb)

Axle loading without load rear

2,090 kg, 2,380 kg, 2,655 kg, 2,805 kg, 2,955 kg
(4,607.7 lb, 5,247 lb, 5,853.3 lb, 6,184 lb, 6,514.7 lb)

Track width front

965 mm, 980 mm
(38 in, 38.6 in)

Track width rear

980 mm
(38.6 in)

Height of mast when lowered

2,160 mm
(85 in)

Free lift

145 mm, 150 mm
(5.7 in, 5.9 in)

Overall height with mast raised

4,250 mm
(167.3 in)

Height to top of overhead guard

2,183 mm
(85.9 in)

Seat height

1,051 mm
(41.4 in)

Length to fork face

2,535 mm, 2,585 mm, 2,650 mm, 2,685 mm, 2,710 mm
(99.8 in, 101.8 in, 104.3 in, 105.7 in, 106.7 in)

Fork carriage width

1,103 mm, 1,115 mm
(43.4 in, 43.9 in)

Ground clearance under mast with load

105 mm, 130 mm
(4.1 in, 5.1 in)

Ground clearance at center of wheelbase with load

135 mm, 140 mm
(5.3 in, 5.5 in)

Turning circle radius

2,220 mm, 2,265 mm, 2,365 mm, 2,395 mm, 2,420 mm
(87.4 in, 89.2 in, 93.1 in, 94.3 in, 95.3 in)

Travel speed

19 km/h, 20 km/h
(11.8 mph, 12.4 mph)

Lifting speed

0.52 m/s, 0.55 m/s, 0.58 m/s, 0.61 m/s, 0.63 m/s
(1.706 ft/s, 1.804 ft/s, 1.903 ft/s, 2.001 ft/s, 2.067 ft/s)

Lowering speed

0.45 m/s, 0.5 m/s
(1.476 ft/s, 1.64 ft/s)

Rated drawbar pull

Max.: 1,850 daN

Min.: 850 daN

Gradeability

Max.: 33.5 %

Min.: 22 %

Rated output

45.6 kW
(62 hp)

Rated speed

2,450 rad.min-1
(389.9 rpm)

Cubic capacity

2,359 cm³
(79.8 US fl oz)

Maximum operating pressure

180 bar, 200 bar
(2,610.7 psi, 2,900.8 psi)

Oil flow

65 l/min
(17.2 us gal/min)

Noise level

78 dB

Description

Powerful and fuel-efficient, the 7-Series (E) LPG forklift features a 4-cylinder water-cooled engine, delivering high torque at low speeds. The HMC 2.4L engine includes a silent chain timing belt, aluminum cylinder block, and oil pan to reduce noise. With a focus on ease and comfort, the forklift's design delivers ergonomic excellence. Features Ergonomics Premium Seat The seat is designed with a low-profile mechanical suspension that significantly reduces vibrations. It helps the operator stay comfortable no matter how rough the day gets. Fully Adjustable The operator can adjust the stepless adjustable column and seat to their preferred position for maximum comfort based on individual preferences. Tilt Cylinder Covers The tilt cylinders are neatly covered to avoid any obstruction. The cover also creates additional space on the floor of the operator compartment. Instrument Panel The easily readable, integrated instrument panel provides operators with a clear overview of the truck’s operation status, simply by navigating the instrument panel. Productivity LED Lights Brighter and longer lasting than traditional sealed beams or halogen lights. Mast Visibility The neatly arranged hydraulic hoses and chains enhance wide front visibility. Pedal Location The pedal location allows the operator to easily switch between pedals. Fuel Efficient Engines The HMC engine provides powerful performance while being fuel efficient. Reliability Oil-Cooled Disc Brakes The oil-cooled disc brake system is totally enclosed for maximum protection against contamination. This maintenance free system ensures maximum uptime, less damage, and lower incured cost.
