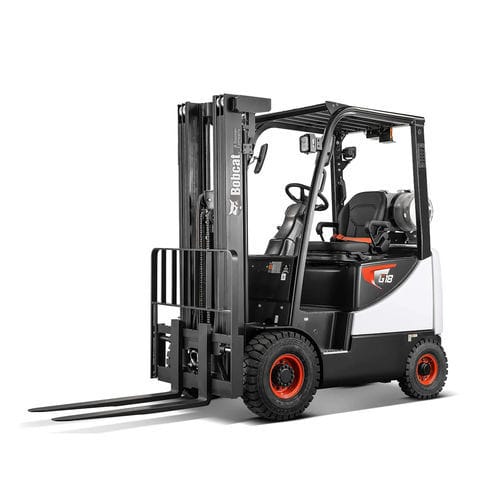

LPG forklift G series
ride-onstoragecounterweight

LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight - image - 2
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight - image - 3
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight - image - 4
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight - image - 5
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / storage / counterweight - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
storage
Other characteristics
counterweight
Carrying capacity

1,500 kg, 1,950 kg, 2,000 kg
(3,306.9 lb, 4,299 lb, 4,409.2 lb)

Lifting height

Max.: 6,000 mm
(236.22 in)

Min.: 2,700 mm
(106.3 in)

Overall width

1,070 mm
(42.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,800 kg, 3,010 kg, 3,170 kg
(6,172.9 lb, 6,635.9 lb, 6,988.7 lb)

Axle loading with maximum load front

3,775 kg, 4,140 kg, 4,520 kg
(8,322.5 lb, 9,127.1 lb, 9,964.9 lb)

Axle loading with maximum load rear

525 kg, 620 kg, 650 kg
(1,157.4 lb, 1,366.9 lb, 1,433 lb)

Axle loading without load front

1,235 kg, 1,270 kg, 1,320 kg
(2,722.7 lb, 2,799.9 lb, 2,910.1 lb)

Axle loading without load rear

1,480 kg, 1,740 kg, 1,935 kg
(3,262.8 lb, 3,836 lb, 4,265.9 lb)

Track width front

890 mm
(35 in)

Track width rear

910 mm
(35.8 in)

Height of mast when lowered

2,185 mm
(86 in)

Free lift

135 mm, 140 mm
(5.3 in, 5.5 in)

Overall height with mast raised

4,355 mm, 4,360 mm
(171.5 in, 171.7 in)

Height to top of overhead guard

2,170 mm
(85.4 in)

Seat height

1,005 mm
(39.6 in)

Length to fork face

2,170 mm
(85.4 in)

Fork carriage width

973 mm
(38.3 in)

Ground clearance under mast with load

120 mm
(4.7 in)

Ground clearance at center of wheelbase with load

150 mm
(5.9 in)

Turning circle radius

744 mm, 1,977 mm, 2,022 mm, 2,050 mm
(29.3 in, 77.8 in, 79.6 in, 80.7 in)

Travel speed

18 km/h
(11.2 mph)

Lifting speed

0.6 m/s, 0.65 m/s
(1.969 ft/s, 2.133 ft/s)

Lowering speed

0.45 m/s, 0.5 m/s
(1.476 ft/s, 1.64 ft/s)

Rated drawbar pull

Max.: 1,440 N

Min.: 440 N

Gradeability

Max.: 36.1 %

Min.: 31 %

Rated output

36.4 kW
(49.5 hp)

Rated speed

2,450 rad.min-1
(389.9 rpm)

Maximum operating pressure

176 bar, 199 bar, 216 bar
(2,552.7 psi, 2,886.3 psi, 3,132.8 psi)

Oil flow

60 l/min
(15.9 us gal/min)

Noise level

81 dB

Description

The Pro-5 Series Forklift with 1.5 to 2t load capacity boasts a powerful LPG engine and silent chain timing belt for noise reduction and improved efficiency. The spacious operator compartment offers ample legroom, adjustable seat position, and well-placed pedals to ensure comfortable and convenient operation. Features Ergonomics Convenience Tray The convenience tray provides excellent storage for paperwork, refreshments, small tools, etc. Its design seamlessly combines both old and new favorites. Tiltable Steering Column The operator can customize the stepless adjustable column and seat to suit their individual preferences. Operator Compartment The operator compartment provides ample leg room and ergonomically positioned operator pedals with a low cowl height to ease operation. Easily Readable Display The easily readable, integrated instrument panel provides operators with a clear overview of the truck’s operation status, simply by navigating the instrument panel. Productivity LED Combination Lights Brighter and longer lasting than traditional sealed beams or halogen lights. Auto Tilt Leveling Returns the mast to the upright vertical position at the push of a button. Rounded Design Counterweight The rounded counterweight makes it easy to maneuver in tight spaces, enhancing productivity. Fuel Efficient Engines The 2.4 Liter LPG Engine (HMC) has increased fuel efficiency and reduced noise levels. Reliability Oil-cooled Disc Brakes The oil-cooled disc brake system is totally enclosed for maximum protection against contamination. This maintenance free system ensures maximum uptime, less damage, and lower incured cost.
