video corpo

LPG forklift G series
ride-onhandlingplatform

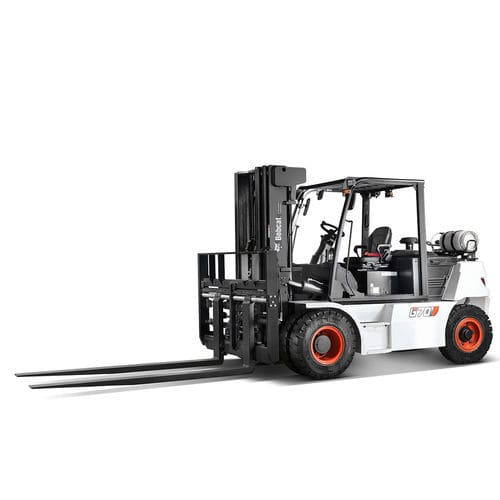

LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 2
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 3
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 4
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 5
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 6
LPG forklift - G series - Doosan Industrial Vehicles - ride-on / handling / platform - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling
Other characteristics
counterweight, rugged, platform
Carrying capacity

6,000 kg, 7,000 kg
(13,227.7 lb, 15,432.4 lb)

Lifting height

Max.: 7,275 mm
(286.42 in)

Min.: 3,000 mm
(118.11 in)

Overall width

2,108 mm
(83 in)

Load center distance

600 mm
(23.6 in)

Weight without load

8,745 kg, 9,425 kg
(19,279.4 lb, 20,778.6 lb)

Axle loading with maximum load front

13,280 kg, 14,615 kg
(29,277.4 lb, 32,220.6 lb)

Axle loading with maximum load rear

1,530 kg, 1,875 kg
(3,373.1 lb, 4,133.7 lb)

Axle loading without load front

3,835 kg, 4,040 kg
(8,454.7 lb, 8,906.7 lb)

Axle loading without load rear

4,705 kg, 5,590 kg
(10,372.7 lb, 12,323.8 lb)

Track width front

1,584 mm
(62.4 in)

Track width rear

1,550 mm
(61 in)

Height of mast when lowered

2,500 mm
(98.4 in)

Free lift

205 mm
(8.1 in)

Overall height with mast raised

4,340 mm
(170.9 in)

Height to top of overhead guard

2,455 mm
(96.7 in)

Seat height

1,455 mm
(57.3 in)

Length to fork face

3,618 mm, 3,697 mm
(142.4 in, 145.6 in)

Ground clearance under mast with load

176 mm
(6.9 in)

Ground clearance at center of wheelbase with load

205 mm
(8.1 in)

Turning circle radius

3,380 mm, 3,430 mm
(133.1 in, 135 in)

Travel speed

22.5 km/h, 22.6 km/h
(14 mph, 14 mph)

Rated drawbar pull

4,236 N, 4,262 N

Gradeability

26.5 %, 30 %

Rated output

70 kW
(95.2 hp)

Rated speed

2,500 rpm
(15,708 rad.min-1)

Cubic capacity

4,294 cm³
(145.2 US fl oz)

Description

Rugged and reliable, our 7-Series LPG forklift performs with the powerful PSI 4.3L LPG Engine. Its Zeus Cabin offers outstanding visibility, a clear dashboard, and high-quality interiors. Service intervals are extended thanks to the virtually maintenance-free oil-cooled disc brakes and dual elements air cleaner that prolongs the engine's lifespan. Features Ergonomics Premium Seat The seat is designed with a low-profile mechanical suspension that significantly reduces vibrations. It helps the operator stay comfortable no matter how rough the day gets. Ergonomic Design All switches are thoughtfully positioned for optimal operator convenience. The parking lever is conveniently located on the left side of the seat and the truck is designed to minimize noise and vibration. Spacious Leg Room and Operator Comfort The spacious floorboard offers ample foot room, ensuring easy entry and exit for the operator. Instrument Panel The easily readable, integrated instrument panel provides operators with a clear overview of the truck’s operation status, simply by navigating the instrument panel. Productivity Wide Visibility Centered seat for better visibility. Wide visibility without distortion. LED Combination Lights Brighter and longer lasting than traditional sealed beams or halogen lights. Swing Out and Down LPG Cradle – Single / Dual The LPG tank is positioned separately from the counterweight and is lowered onto a stable platform. This design minimizes strain on the operator's arms and back, simplifying the installation and removal of the tank. Powerful and Trustable Engine
