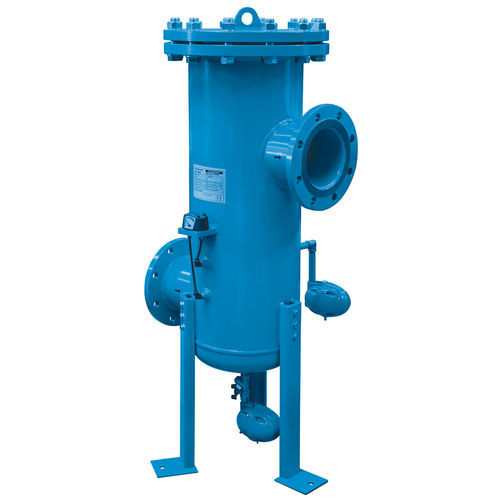

Air filter F seriescompressed aircartridgepressure
Add to favorites
Compare this product
Characteristics
- Designed for
- air, compressed air
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- industrial
- Material
- metal
- Mounting
- flange
- Operating pressure
14 bar
(203.053 psi)- Flow
Max.: 30,000 m³/h
(1,059,440.002 ft³/h)Min.: 2,500 m³/h
(88,286.667 ft³/h)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: 25 °C
(77 °F)
Description
- Elements are assembled with a tie rod system
- Two external float drains for maximum drainage
- Unique design for pre-separation zone
- Strong welded design
- CE and ASME tanks available
- Design for easy element change from top flange
External Float Drain
Drytec external drain is designed to remove liquid condensation from collection
points in a Compressed Air System.
Durable epoxy powder-coat finish and corrosion resistant internal anodised
coating for longer service life.
Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by
the correction factor corresponding to the working pressure.
