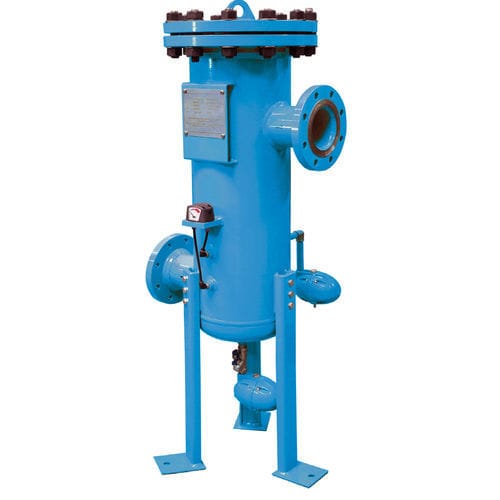

Oil mist separator ELM series

airprocess

- Ultra low pressure drop reduces energy costs - Positive gasket seals eliminate media bypass - Filter change out differential 170 mbar (2.5 psi) - True Air/Oil Separator - Long service life Applications Include - Capturing oil fog, mist, or smoke from exhaust and pressure unloading vents on oil flooded compressors, vacuum pumps and blowers - Any application requiring Low Delta P coalescing of large air volumes - Vacuum Freeze Drying - Vacuum Out-Gasing and Vacuum Coating - Food Processing - Nailers/Staplers - Industrial Vacuum Processes - Cement & Paper Processing Design Design Mist Eliminators are designed to meet the demand for: - Efficient removal of oil-mist carryover from piston or oil flooded rotary compressors - Long service life - Strength to withstand strenuous operating conditions - Protection from oil slugs or compressor Air/Oil separator failure Features - Very low pressure drop - Large oil catching efficiency - Easy field cleaning - Positive sealing O-rings - Temperature (continuous) 4°C (40°F) min. 80°C (176°F) max. - Auto Float Drain is standard - Multiple drain style options available - Pressure rating of 14 bar (200 psi) - Removal of particles down to 0.01 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.01 ppm - Increased surface area in a given volume allows low velocity separation of ultra fine oil mist - Elements are grounded to canister, minimizing static electricity problems
