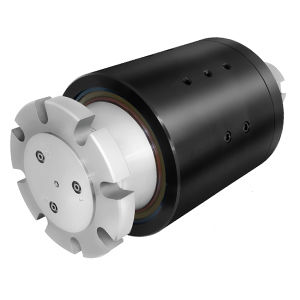

Oil rotary union TP-12802033-passagesteelcarbon steel
Add to favorites
Compare this product
Characteristics
- Medium
- for oil
- Number of passages
- 3-passage
- Material
- steel, carbon steel
- Other characteristics
- with seal, high-speed, large-diameter
- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 34 bar
(493 psi)Min.: 0 bar
(0 psi)- Nominal size
227 mm
(8.937 in)
Description
Overview
General Information
Geometry & Passages
Related Projects (page metadata)
Technical specifications
- 3-passage high speed rotary union designed for a military tank track testing application.
- Features include a specialized controlled clearance sealing system for high speed service and a FEA-verified load bearing design.
General Information
- Industry: Defense
- Media Type(s): Oil
- Environment: Indoor
- Material: Carbon / Alloy Steel
- Max. Pressure(s): 500 PSI [34 BAR]
- Max. Speed: 4000 RPM
Geometry & Passages
- Number of Passages: 3
- Passage Size(s): 0.188" [4.8 mm]
- Through Bore: None
- Diameter: 8.938" [227 mm]
- Length: 18.565" [471.6 mm]
Related Projects (page metadata)
- Industry: Defense
- # of Passages: 3 Passages
- Passage Size Range: 0.125" - 0.249" [3.18 mm - 6.32 mm]
- Rotation Speed (RPM): 100 RPM & Over
- Pressure (PSI): 200 - 6,499 PSI [14 - 448 BAR]
- Media: Oil
- Material: Carbon / Alloy Steel
- Thru Bore: None
- Environment: Indoor
Technical specifications
- Model / Project ID: TP-1280203
- Type: 3-passage rotary union (high speed)
- Application: Military tank track testing
- Sealing: Specialized controlled clearance sealing system for high speed service
- Structural: FEA verified load bearing design
- Media: Oil
- Materials: Carbon / Alloy Steel
- Maximum Pressure: 500 PSI [34 BAR]
- Maximum Rotational Speed: 4000 RPM
- Number of Passages: 3
- Passage Size: 0.188" [4.8 mm]
- Through Bore: None
- Overall Diameter: 8.938" [227 mm]
- Length: 18.565" [471.6 mm]
