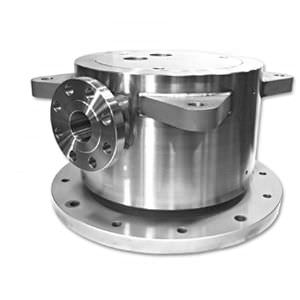

Refrigerant fluid rotary union SR-544002-passagefor offshore applicationsstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for refrigerant fluids
- Number of passages
- 2-passage
- Applications
- for offshore applications
- Material
- stainless steel
- Other characteristics
- custom, flange, low-speed
- Rotational speed
Max.: 5 rpm
(31.42 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 7 bar
(102 psi)Min.: 0 bar
(0 psi)- Nominal size
63.5 mm
(2.5 in)
Description
Overview
2 passage rotary union designed for a cooling system for an advanced radar system application. Features include all stainless steel construction and customer specified flange connections and mounting tabs.
Application
Designed for defense industry use as a coolant transfer solution in an advanced radar cooling system; suitable for offshore environments.
Key Features
Caractéristiques / Spécifications techniques
2 passage rotary union designed for a cooling system for an advanced radar system application. Features include all stainless steel construction and customer specified flange connections and mounting tabs.
Application
Designed for defense industry use as a coolant transfer solution in an advanced radar cooling system; suitable for offshore environments.
Key Features
- Two internal fluid passages for coolant transfer
- All stainless steel construction for corrosion resistance
- Customer-specified flange connections
- Integrated mounting tabs for attachment
- Low-speed operation capability
Caractéristiques / Spécifications techniques
- Industry: Defense
- Media Type(s): Coolant
- Environment: Offshore
- Material: Stainless Steel
- Max. Pressure(s): 100 PSI [7 BAR]
- Max. Speed: 5 RPM
- Number of Passages: 2
- Passage Size(s): 2.500" [63.5 mm]
- Through Bore: None
- Diameter: 17.940" [455.7 mm]
- Length: 13.820" [351 mm]
